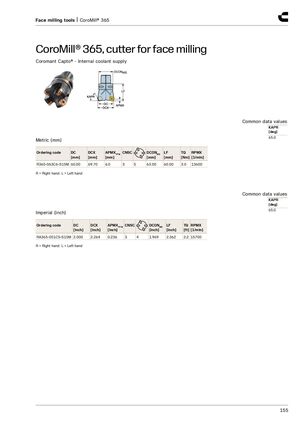

CoroMill® 365, cutter for face milling
Coromant Capto® - Internal coolant supply
Common data values
KAPR [deg] Metric (mm) 65.0
| Ordering code | DC [mm] | DCX [mm] | APMXFF [mm] | W CNSC | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] |
| R365-063C6-S15M | 60.00 | 69.70 | 6.0 | 3 5 | 63.00 | 60.00 | 3.0 | 13600 |
R = Right hand, L = Left hand
Common data values
KAPR [deg] Imperial (inch) 65.0
| Ordering code | DC [inch] | DCX [inch] | APMXFFW [inch] | CNSC | DCONMS [inch] | LF [inch] | TQ [ft] | RPMX [1/min] |
| RA365-051C5-S15M | 2.000 | 2.264 | 0.236 | 3 4 | 1.969 | 2.362 | 2.2 | 15700 |
R = Right hand, L = Left hand
