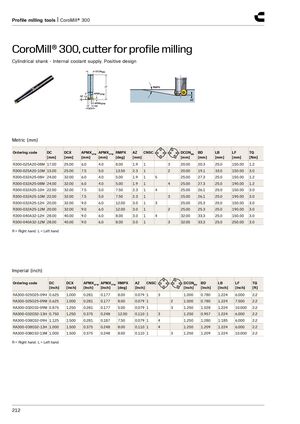

CoroMill® 300, cutter for profile milling
Cylindrical shank - Internal coolant supply. Positive design
Metric (mm)
| Ordering code DC [mm] | DCX [mm] | APMXEF [mm] | W APMXFF [mm] | W RMPX [deg] | AZ [mm] | CNSC | DCONMS [mm] | BD [mm] | LB [mm] | LF [mm] | TQ [Nm] | |
| R300-025A20-08M 17.00 | 25.00 | 6.0 | 4.0 | 8.00 | 1.9 | 1 | 3 | 20.00 | 20.3 | 25.0 | 150.00 | 1.2 |
| R300-025A20-10M 15.00 | 25.00 | 7.5 | 5.0 | 13.50 | 2.3 | 1 | 2 | 20.00 | 19.1 | 33.0 | 150.00 | 3.0 |
| R300-032A25-08H 24.00 | 32.00 | 6.0 | 4.0 | 5.00 | 1.9 | 1 5 | 25.00 | 27.3 | 25.0 | 150.00 | 1.2 | |
| R300-032A25-08M 24.00 | 32.00 | 6.0 | 4.0 | 5.00 | 1.9 | 1 | 4 | 25.00 | 27.3 | 25.0 | 190.00 | 1.2 |
| R300-032A25-10H 22.00 | 32.00 | 7.5 | 5.0 | 7.50 | 2.3 | 1 4 | 25.00 | 26.1 | 25.0 | 150.00 | 3.0 | |
| R300-032A25-10M 22.00 | 32.00 | 7.5 | 5.0 | 7.50 | 2.3 | 1 | 3 | 25.00 | 26.1 | 25.0 | 190.00 | 3.0 |
| R300-032A25-12H 20.00 | 32.00 | 9.0 | 6.0 | 12.00 | 3.0 | 1 3 | 25.00 | 25.3 | 25.0 | 150.00 | 3.0 | |
| R300-032A25-12M 20.00 | 32.00 | 9.0 | 6.0 | 12.00 | 3.0 | 1 | 2 | 25.00 | 25.3 | 25.0 | 190.00 | 3.0 |
| R300-040A32-12H 28.00 | 40.00 | 9.0 | 6.0 | 8.00 | 3.0 | 1 4 | 32.00 | 33.3 | 25.0 | 150.00 | 3.0 | |
| R300-040A32-12M 28.00 | 40.00 | 9.0 | 6.0 | 8.00 | 3.0 | 1 | 3 | 32.00 | 33.3 | 25.0 | 250.00 | 3.0 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | DC [inch] | DCX [inch] | APMXEF [inch] | W APMXFF [inch] | W RMPX [deg] | AZ [inch] | CNS | C | DCONMS [inch] | BD [inch] | LB [inch] | LF [inch] | TQ [ft] | |
| RA300-025O25-09H | 0.625 | 1.000 | 0.281 | 0.177 | 8.00 | 0.079 | 1 | 3 | 1.000 | 0.780 | 1.224 | 6.000 | 2.2 | |
| RA300-025O25-09M | 0.625 | 1.000 | 0.281 | 0.177 | 8.00 | 0.079 | 1 | 2 | 1.000 | 0.780 | 1.224 | 7.500 | 2.2 | |
| RA300-032O32-09M | 0.875 | 1.250 | 0.281 | 0.177 | 5.00 | 0.079 | 1 | 3 | 1.250 | 1.028 | 1.224 | 10.000 | 2.2 | |
| RA300-032O32-13H | 0.750 | 1.250 | 0.375 | 0.248 | 12.00 | 0.110 | 1 | 3 | 1.250 | 0.957 | 1.224 | 6.000 | 2.2 | |
| RA300-038O32-09H | 1.125 | 1.500 | 0.281 | 0.187 | 7.50 | 0.079 | 1 | 4 | 1.250 | 1.280 | 1.185 | 6.000 | 2.2 | |
| RA300-038O32-13H | 1.000 | 1.500 | 0.375 | 0.248 | 8.00 | 0.110 | 1 | 4 | 1.250 | 1.209 | 1.224 | 6.000 | 2.2 | |
| RA300-038O32-13M | 1.000 | 1.500 | 0.375 | 0.248 | 8.00 | 0.110 | 1 | 3 | 1.250 | 1.209 | 1.224 | 10.000 | 2.2 |
R = Right hand, L = Left hand
