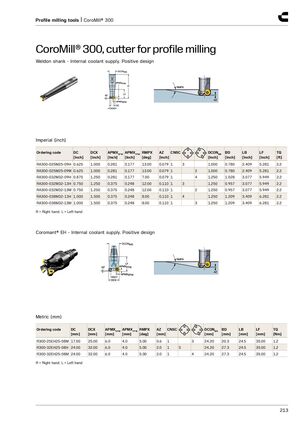

CoroMill® 300, cutter for profile milling
Weldon shank - Internal coolant supply. Positive design
Imperial (inch)
| Ordering code DC [inch] | DCX [inch] | APMXEF [inch] | W APMXFF [inch] | W RMPX [deg] | AZ [inch] | CNSC | DCONMS [inch] | BD [inch] | LB [inch] | LF [inch] | TQ [ft] | |
| RA300-025M25-09H 0.625 | 1.000 | 0.281 | 0.177 | 13.00 | 0.079 | 1 | 3 | 1.000 | 0.780 | 2.409 | 5.281 | 2.2 |
| RA300-025M25-09M 0.625 | 1.000 | 0.281 | 0.177 | 13.00 | 0.079 | 1 | 2 1.000 | 0.780 | 2.409 | 5.281 | 2.2 | |
| RA300-032M32-09H 0.875 | 1.250 | 0.281 | 0.177 | 7.00 | 0.079 | 1 | 4 1.250 | 1.028 | 3.077 | 5.949 | 2.2 | |
| RA300-032M32-13H 0.750 | 1.250 | 0.375 | 0.248 | 12.00 | 0.110 | 1 | 3 | 1.250 | 0.957 | 3.077 | 5.949 | 2.2 |
| RA300-032M32-13M 0.750 | 1.250 | 0.375 | 0.248 | 12.00 | 0.110 | 1 | 2 1.250 | 0.957 | 3.077 | 5.949 | 2.2 | |
| RA300-038M32-13H 1.000 | 1.500 | 0.375 | 0.248 | 8.00 | 0.110 | 1 | 4 | 1.250 | 1.209 | 3.409 | 6.281 | 2.2 |
| RA300-038M32-13M 1.000 | 1.500 | 0.375 | 0.248 | 8.00 | 0.110 | 1 | 3 1.250 | 1.209 | 3.409 | 6.281 | 2.2 |
R = Right hand, L = Left hand
Coromant® EH - Internal coolant supply. Positive design
Metric (mm)
| Ordering code | DC | DCX | APMXEF | W APMXFF | W RMPX | AZ | CNSC | DCONMS | BD | LB | LF | TQ | |
| [mm] | [mm] | [mm] | [mm] | [deg] | [mm] | [mm] | [mm] | [mm] | [mm] | [Nm] | |||
| R300-25EH25-08M | 17.00 | 25.00 | 6.0 | 4.0 | 5.00 | 0.6 | 1 | 3 | 24.20 | 20.3 | 24.5 | 35.00 | 1.2 |
| R300-32EH25-08H | 24.00 | 32.00 | 6.0 | 4.0 | 5.00 | 2.0 | 1 | 5 | 24.20 | 27.3 | 24.5 | 35.00 | 1.2 |
| R300-32EH25-08M | 24.00 | 32.00 | 6.0 | 4.0 | 5.00 | 2.0 | 1 | 4 | 24.20 | 27.3 | 24.5 | 35.00 | 1.2 |
R = Right hand, L = Left hand
