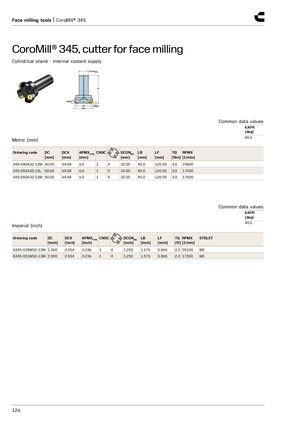

CoroMill® 345, cutter for face milling
Cylindrical shank - Internal coolant supply
Common data values
KAPR [deg] Metric (mm) 45.0
| Ordering code | DC [mm] | DCX [mm] | APMXFFW [mm] | CNSC | DCONMS [mm] | LB [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | |
| 345-040A32-13M | 40.00 | 54.08 | 6.0 | 1 | 4 | 32.00 | 40.0 | 120.00 | 3.0 | 19600 |
| 345-050A32-13L | 50.00 | 64.08 | 6.0 | 1 | 3 | 32.00 | 40.0 | 120.00 | 3.0 | 17500 |
| 345-050A32-13M | 50.00 | 64.08 | 6.0 | 1 | 4 | 32.00 | 40.0 | 120.00 | 3.0 | 17500 |
Common data values
| KAPR [deg] | ||||||||||
| mperial (inch) | 45.0 | |||||||||
| Ordering code | DC [inch] | DCX [inch] | APMXFF [inch] | W CNSC | DCONMS [inch] | LB [inch] | LF [inch] | TQ [ft] RPMX [1/min] | STDLET | |
| A345-038M32-13M | 1.500 | 2.054 | 0.236 | 1 4 | 1.250 | 1.575 | 5.865 | 2.2 20100 | WE | |
| A345-051M32-13M | 2.000 | 2.554 | 0.236 | 1 4 | 1.250 | 1.575 | 5.865 | 2.2 17300 | WE |
