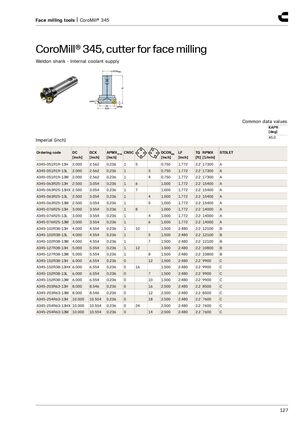

CoroMill® 345, cutter for face milling
Weldon shank - Internal coolant supply
Common data values
KAPR [deg] Imperial (inch) 45.0
| Ordering code | DC [inch] | DCX [inch] | APMXFFW [inch] | CNSC | DCONMS [inch] | LF [inch] | TQ [ft] | RPMX [1/min] | STDLET | ||
| A345-051R19-13H | 2.000 | 2.562 | 0.236 | 1 | 5 | 0.750 | 1.772 | 2.2 | 17300 | A | |
| A345-051R19-13L | 2.000 | 2.562 | 0.236 | 1 | 3 | 0.750 | 1.772 | 2.2 | 17300 | A | |
| A345-051R19-13M | 2.000 | 2.562 | 0.236 | 1 | 4 | 0.750 | 1.772 | 2.2 | 17300 | A | |
| A345-063R25-13H | 2.500 | 3.054 | 0.236 | 1 | 6 | 1.000 | 1.772 | 2.2 | 15400 | A | |
| A345-063R25-13HX | 2.500 | 3.054 | 0.236 | 1 | 7 | 1.000 | 1.772 | 2.2 | 15400 | A | |
| A345-063R25-13L | 2.500 | 3.054 | 0.236 | 1 | 4 | 1.000 | 1.772 | 2.2 | 15400 | A | |
| A345-063R25-13M | 2.500 | 3.054 | 0.236 | 1 | 5 | 1.000 | 1.772 | 2.2 | 15400 | A | |
| A345-076R25-13H | 3.000 | 3.554 | 0.236 | 1 | 8 | 1.000 | 1.772 | 2.2 | 14000 | A | |
| A345-076R25-13L | 3.000 | 3.554 | 0.236 | 1 | 4 | 1.000 | 1.772 | 2.2 | 14000 | A | |
| A345-076R25-13M | 3.000 | 3.554 | 0.236 | 1 | 6 | 1.000 | 1.772 | 2.2 | 14000 | A | |
| A345-102R38-13H | 4.000 | 4.554 | 0.236 | 1 | 10 | 1.500 | 2.480 | 2.2 | 12100 | B | |
| A345-102R38-13L | 4.000 | 4.554 | 0.236 | 1 | 5 | 1.500 | 2.480 | 2.2 | 12100 | B | |
| A345-102R38-13M | 4.000 | 4.554 | 0.236 | 1 | 7 | 1.500 | 2.480 | 2.2 | 12100 | B | |
| A345-127R38-13H | 5.000 | 5.554 | 0.236 | 1 | 12 | 1.500 | 2.480 | 2.2 | 10800 | B | |
| A345-127R38-13M | 5.000 | 5.554 | 0.236 | 1 | 8 | 1.500 | 2.480 | 2.2 | 10800 | B | |
| A345-152R38-13H | 6.000 | 6.554 | 0.236 | 0 | 12 | 1.500 | 2.480 | 2.2 | 9900 | C | |
| A345-152R38-13HX | 6.000 | 6.554 | 0.236 | 0 | 16 | 1.500 | 2.480 | 2.2 | 9900 | C | |
| A345-152R38-13L | 6.000 | 6.554 | 0.236 | 0 | 7 | 1.500 | 2.480 | 2.2 | 9900 | C | |
| A345-152R38-13M | 6.000 | 6.554 | 0.236 | 0 | 10 | 1.500 | 2.480 | 2.2 | 9900 | C | |
| A345-203R63-13H | 8.000 | 8.546 | 0.236 | 0 | 16 | 2.500 | 2.480 | 2.2 | 8500 | C | |
| A345-203R63-13M | 8.000 | 8.546 | 0.236 | 0 | 12 | 2.500 | 2.480 | 2.2 | 8500 | C | |
| A345-254R63-13H | 10.000 | 10.554 | 0.236 | 0 | 18 | 2.500 | 2.480 | 2.2 | 7600 | C | |
| A345-254R63-13HX | 10.000 | 10.554 | 0.236 | 0 | 24 | 2.500 | 2.480 | 2.2 | 7600 | C | |
| A345-254R63-13M | 10.000 | 10.554 | 0.236 | 0 | 14 | 2.500 | 2.480 | 2.2 | 7600 | C |
