Инструменты для фрезерования уступов | CoroMill® MS20

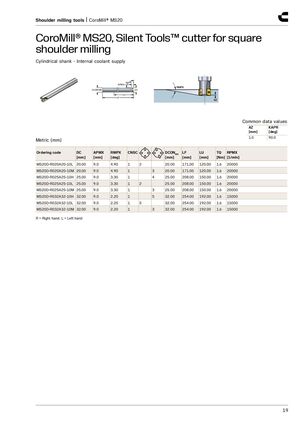

CoroMill® MS20, фреза Silent Tools™ для фрезерования прямоугольных уступов
Цилиндрическая державка - Внутренняя подача СОЖ
Стандартные значения параметров:
AZ: 1.0 [мм], KAPR: 90.0 [град]
Метрические размеры (мм)
| Артикул | DC [мм] | APMX [мм] | RMPX [град] | CNSC | DCONMS [мм] | LF [мм] | LU [мм] | TQ [Нм] | RPMX [1/мин] | |
|---|---|---|---|---|---|---|---|---|---|---|
| MS20D-R020A20-10L | 20.00 | 9.0 | 4.90 | 1 | 2 | 20.00 | 171.00 | 120.00 | 1.6 | 20000 |
| MS20D-R020A20-10M | 20.00 | 9.0 | 4.90 | 1 | 3 | 20.00 | 171.00 | 120.00 | 1.6 | 20000 |
| MS20D-R025A25-10H | 25.00 | 9.0 | 3.30 | 1 | 4 | 25.00 | 208.00 | 150.00 | 1.6 | 20000 |
| MS20D-R025A25-10L | 25.00 | 9.0 | 3.30 | 1 | 2 | 25.00 | 208.00 | 150.00 | 1.6 | 20000 |
| MS20D-R025A25-10M | 25.00 | 9.0 | 3.30 | 1 | 3 | 25.00 | 208.00 | 150.00 | 1.6 | 20000 |
| MS20D-R032A32-10H | 32.00 | 9.0 | 2.20 | 1 | 5 | 32.00 | 254.00 | 192.00 | 1.6 | 15000 |
| MS20D-R032A32-10L | 32.00 | 9.0 | 2.20 | 1 | 5 | 32.00 | 254.00 | 192.00 | 1.6 | 15000 |
| MS20D-R032A32-10M | 32.00 | 9.0 | 2.20 | 1 | 3 | 32.00 | 254.00 | 192.00 | 1.6 | 15000 |
R = Правое вращение, L = Левое вращение
