Инструменты для фрезерования уступов | CoroMill® MS20

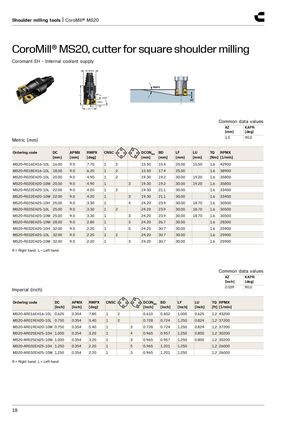

CoroMill® MS20, фреза для фрезерования прямоугольных уступов
Система Coromant EH - Внутренняя подача СОЖ
Стандартные значения параметров:
AZ: 1.0 [мм], KAPR: 90.0 [град]
Метрические размеры (мм)
| Артикул | DC [мм] | APMX [мм] | RMPX [град] | CNSC | DCONMS [мм] | BD [мм] | LF [мм] | LU [мм] | TQ [Нм] | RPMX [1/мин] | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MS20-R016EH16-10L | 16.00 | 9.0 | 7.70 | 1 | 2 | 15.50 | 15.4 | 25.00 | 15.50 | 1.6 | 42900 |
| MS20-R018EH16-10L | 18.00 | 9.0 | 6.20 | 1 | 2 | 15.50 | 17.4 | 25.00 | 1.6 | 38900 | |
| MS20-R020EH20-10L | 20.00 | 9.0 | 4.90 | 1 | 2 | 19.30 | 19.2 | 30.00 | 19.20 | 1.6 | 35800 |
| MS20-R020EH20-10M | 20.00 | 9.0 | 4.90 | 1 | 3 | 19.30 | 19.2 | 30.00 | 19.20 | 1.6 | 35800 |
| MS20-R022EH20-10L | 22.00 | 9.0 | 4.20 | 1 | 2 | 19.30 | 21.1 | 30.00 | 1.6 | 33400 | |
| MS20-R022EH20-10M | 22.00 | 9.0 | 4.20 | 1 | 3 | 19.30 | 21.1 | 30.00 | 1.6 | 33400 | |
| MS20-R025EH25-10H | 25.00 | 9.0 | 3.30 | 1 | 4 | 24.20 | 23.9 | 30.00 | 18.70 | 1.6 | 30500 |
| MS20-R025EH25-10L | 25.00 | 9.0 | 3.30 | 1 | 2 | 24.20 | 23.9 | 30.00 | 18.70 | 1.6 | 30500 |
| MS20-R025EH25-10M | 25.00 | 9.0 | 3.30 | 1 | 3 | 24.20 | 23.9 | 30.00 | 18.70 | 1.6 | 30500 |
| MS20-R028EH25-10M | 28.00 | 9.0 | 2.80 | 1 | 3 | 24.20 | 26.7 | 30.00 | 1.6 | 28300 | |
| MS20-R032EH25-10H | 32.00 | 9.0 | 2.20 | 1 | 5 | 24.20 | 30.7 | 30.00 | 1.6 | 25900 | |
| MS20-R032EH25-10L | 32.00 | 9.0 | 2.20 | 1 | 2 | 24.20 | 30.7 | 30.00 | 1.6 | 25900 | |
| MS20-R032EH25-10M | 32.00 | 9.0 | 2.20 | 1 | 3 | 24.20 | 30.7 | 30.00 | 1.6 | 25900 |
R = Правое вращение, L = Левое вращение
Дюймовые размеры (дюймы)
| Артикул | DC [дюйм] | APMX [дюйм] | RMPX [град] | CNSC | DCONMS [дюйм] | BD [дюйм] | LF [дюйм] | LU [дюйм] | TQ [фт] | RPMX [1/мин] | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MS20-AR016EH16-10L | 0.625 | 0.354 | 7.80 | 1 | 2 | 0.610 | 0.602 | 1.000 | 0.625 | 1.2 | 43200 |
| MS20-AR019EH20-10L | 0.750 | 0.354 | 5.40 | 1 | 2 | 0.728 | 0.724 | 1.250 | 0.824 | 1.2 | 37200 |
| MS20-AR019EH20-10M | 0.750 | 0.354 | 5.40 | 1 | 3 | 0.728 | 0.724 | 1.250 | 0.824 | 1.2 | 37200 |
| MS20-AR025EH25-10H | 1.000 | 0.354 | 3.20 | 1 | 4 | 0.965 | 0.957 | 1.250 | 0.800 | 1.2 | 30200 |
| MS20-AR025EH25-10M | 1.000 | 0.354 | 3.20 | 1 | 3 | 0.965 | 0.957 | 1.250 | 0.800 | 1.2 | 30200 |
| MS20-AR032EH25-10H | 1.250 | 0.354 | 2.20 | 1 | 5 | 0.965 | 1.201 | 1.250 | 1.2 | 26000 | |
| MS20-AR032EH25-10M | 1.250 | 0.354 | 2.20 | 1 | 3 | 0.965 | 1.201 | 1.250 | 1.2 | 26000 |
R = Правое вращение, L = Левое вращение
