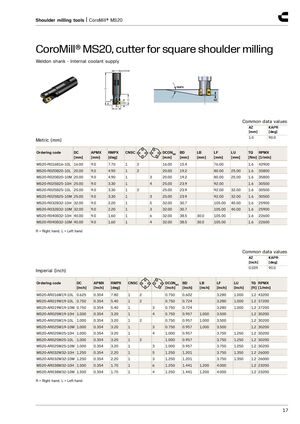

Инструменты для фрезерования уступов | CoroMill® MS20
CoroMill® MS20, фреза для фрезерования прямоугольных уступов
Державка Weldon - Внутренняя подача СОЖ
Стандартные значения параметров:
AZ: 1.0 [мм], KAPR: 90.0 [град]
Метрические размеры (мм)
| Артикул | DC [мм] | APMX [мм] | RMPX [град] | CNSC | DCONMS [мм] | BD [мм] | LB [мм] | LF [мм] | LU [мм] | TQ [Нм] | RPMX [1/мин] | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MS20-R016B16-10L | 16.00 | 9.0 | 7.70 | 1 | 2 | 16.00 | 15.4 | 76.00 | 1.6 | 42900 | ||
| MS20-R020B20-10L | 20.00 | 9.0 | 4.90 | 1 | 2 | 20.00 | 19.2 | 80.00 | 25.00 | 1.6 | 35800 | |
| MS20-R020B20-10M | 20.00 | 9.0 | 4.90 | 1 | 3 | 20.00 | 19.2 | 80.00 | 25.00 | 1.6 | 35800 | |
| MS20-R025B25-10H | 25.00 | 9.0 | 3.30 | 1 | 4 | 25.00 | 23.9 | 92.00 | 1.6 | 30500 | ||
| MS20-R025B25-10L | 25.00 | 9.0 | 3.30 | 1 | 2 | 25.00 | 23.9 | 92.00 | 32.00 | 1.6 | 30500 | |
| MS20-R025B25-10M | 25.00 | 9.0 | 3.30 | 1 | 3 | 25.00 | 23.9 | 92.00 | 32.00 | 1.6 | 30500 | |
| MS20-R032B32-10H | 32.00 | 9.0 | 2.20 | 1 | 5 | 32.00 | 30.7 | 105.00 | 40.00 | 1.6 | 25900 | |
| MS20-R032B32-10M | 32.00 | 9.0 | 2.20 | 1 | 3 | 32.00 | 30.7 | 105.00 | 40.00 | 1.6 | 25900 | |
| MS20-R040B32-10H | 40.00 | 9.0 | 1.60 | 1 | 6 | 32.00 | 38.5 | 30.0 | 105.00 | 1.6 | 22600 | |
| MS20-R040B32-10M | 40.00 | 9.0 | 1.60 | 1 | 4 | 32.00 | 38.5 | 30.0 | 105.00 | 1.6 | 22600 |
R = Правое вращение, L = Левое вращение
Дюймовые размеры (дюймы)
| Артикул | DC [дюйм] | APMX [дюйм] | RMPX [град] | CNSC | DCONMS [дюйм] | BD [дюйм] | LB [дюйм] | LF [дюйм] | LU [дюйм] | TQ [фт] | RPMX [1/мин] | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MS20-AR016M19-10L | 0.625 | 0.354 | 7.80 | 1 | 2 | 0.750 | 0.602 | 3.280 | 1.000 | 1.2 | 43200 | |
| MS20-AR019M19-10L | 0.750 | 0.354 | 5.40 | 1 | 2 | 0.750 | 0.724 | 3.280 | 1.000 | 1.2 | 37200 | |
| MS20-AR019M19-10M | 0.750 | 0.354 | 5.40 | 1 | 3 | 0.750 | 0.724 | 3.280 | 1.000 | 1.2 | 37200 | |
| MS20-AR025M19-10H | 1.000 | 0.354 | 3.20 | 1 | 4 | 0.750 | 0.957 | 1.000 | 3.500 | 1.2 | 30200 | |
| MS20-AR025M19-10L | 1.000 | 0.354 | 3.20 | 1 | 2 | 0.750 | 0.957 | 1.000 | 3.500 | 1.2 | 30200 | |
| MS20-AR025M19-10M | 1.000 | 0.354 | 3.20 | 1 | 3 | 0.750 | 0.957 | 1.000 | 3.500 | 1.2 | 30200 | |
| MS20-AR025M25-10H | 1.000 | 0.354 | 3.20 | 1 | 4 | 1.000 | 0.957 | 3.750 | 1.250 | 1.2 | 30200 | |
| MS20-AR025M25-10L | 1.000 | 0.354 | 3.20 | 1 | 2 | 1.000 | 0.957 | 3.750 | 1.250 | 1.2 | 30200 | |
| MS20-AR025M25-10M | 1.000 | 0.354 | 3.20 | 1 | 3 | 1.000 | 0.957 | 3.750 | 1.250 | 1.2 | 30200 | |
| MS20-AR032M32-10H | 1.250 | 0.354 | 2.20 | 1 | 5 | 1.250 | 1.201 | 3.750 | 1.350 | 1.2 | 26000 | |
| MS20-AR032M32-10M | 1.250 | 0.354 | 2.20 | 1 | 3 | 1.250 | 1.201 | 3.750 | 1.350 | 1.2 | 26000 | |
| MS20-AR038M32-10H | 1.500 | 0.354 | 1.70 | 1 | 6 | 1.250 | 1.441 | 1.200 | 4.000 | 1.2 | 23200 | |
| MS20-AR038M32-10M | 1.500 | 0.354 | 1.70 | 1 | 4 | 1.250 | 1.441 | 1.200 | 4.000 | 1.2 | 23200 |
R = Правое вращение, L = Левое вращение
