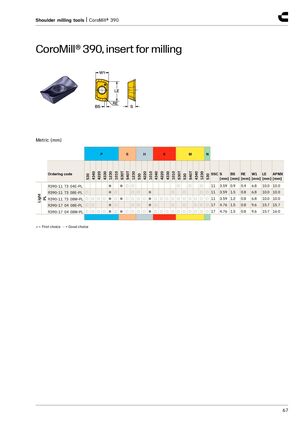

Shoulder milling tools | CoroMill® 390 CoroMill® 390, insert for milling Metric (mm) P S H K M N S30T S40T S30T S40T 4340 4220 4330 1230 1010 1230 4220 1010 4340 4220 4330 1010 4340 1230 Ordering code SSC S BS RE W1 LE APMX 530 530 530 530 [mm] [mm] [mm] [mm] [mm] [mm] R390-11 T3 04E-PL ● ●○○ ○ ○ ○ 11 3.59 0.9 0.4 6.8 10.0 10.0 R390-11 T3 08E-PL ○ ●○ ○○ ● ○ ○ ○ ○ 11 3.59 1.5 0.8 6.8 10.0 10.0 Light R390-11 T3 08M-PL ○ ○ ○ ○ ● ○ ● ○ ○ ○ ○ ● ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ 11 PL 3.59 1.2 0.8 6.8 10.0 10.0 R390-17 04 08E-PL ○ ○ ●○ ○○ ●○ ○ ○ ○ ○ ○ 17 4.76 1.5 0.8 9.6 15.7 15.7 R390-17 04 08M-PL ○ ○ ○ ○ ● ○ ● ○ ○ ○ ○ ● ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ 17 4.76 1.5 0.8 9.6 15.7 16.0 ● = First choice ○ = Good choice 67
