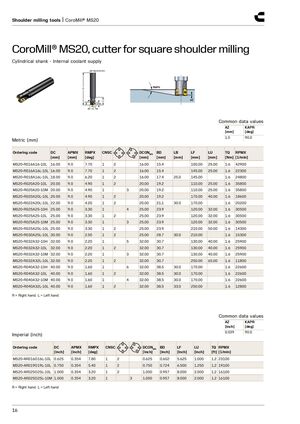

Инструменты для фрезерования уступов | CoroMill® MS20
CoroMill® MS20, резец для фрезерования прямоугольного уступа
Цилиндрический хвостовик — подача СОЖ внутренним каналом
| Код заказа | DC [мм] | APMX [мм] | RMPX [град] | CNSC | DCONMS [мм] | BD [мм] | LB [мм] | LF [мм] | LU [мм] | TQ [Нм] | RPMX [об/мин] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MS20-R016A16-10L | 16,00 | 9,0 | 7,70 | 1 | 16,00 | 15,4 | 100,00 | 25,00 | 1,6 | 42900 | |
| MS20-R016A16L-10L | 16,00 | 9,0 | 7,70 | 1 | 16,00 | 15,4 | 145,00 | 25,00 | 1,6 | 22300 | |
| MS20-R018A16L-10L | 18,00 | 9,0 | 6,20 | 1 | 16,00 | 17,4 | 25,0 | 145,00 | 1,6 | 24800 | |
| MS20-R020A20-10L | 20,00 | 9,0 | 4,90 | 1 | 20,00 | 19,2 | 110,00 | 25,00 | 1,6 | 35800 | |
| MS20-R020A20-10M | 20,00 | 9,0 | 4,90 | 1 | 20,00 | 19,2 | 110,00 | 25,00 | 1,6 | 35800 | |
| MS20-R020A20L-10L | 20,00 | 9,0 | 4,90 | 1 | 20,00 | 19,2 | 170,00 | 40,00 | 1,6 | 18600 | |
| MS20-R022A20L-10L | 22,00 | 9,0 | 4,20 | 1 | 20,00 | 21,1 | 30,0 | 170,00 | 1,6 | 20200 | |
| MS20-R025A25-10H | 25,00 | 9,0 | 3,30 | 1 | 25,00 | 23,9 | 120,00 | 32,00 | 1,6 | 30500 | |
| MS20-R025A25-10L | 25,00 | 9,0 | 3,30 | 1 | 25,00 | 23,9 | 120,00 | 32,00 | 1,6 | 30500 | |
| MS20-R025A25-10M | 25,00 | 9,0 | 3,30 | 1 | 25,00 | 23,9 | 120,00 | 32,00 | 1,6 | 30500 | |
| MS20-R025A25L-10L | 25,00 | 9,0 | 3,30 | 1 | 25,00 | 23,9 | 210,00 | 50,00 | 1,6 | 14300 | |
| MS20-R030A25L-10L | 30,00 | 9,0 | 2,50 | 1 | 25,00 | 28,7 | 30,0 | 210,00 | 1,6 | 15300 | |
| MS20-R032A32-10H | 32,00 | 9,0 | 2,20 | 1 | 32,00 | 30,7 | 130,00 | 40,00 | 1,6 | 25900 | |
| MS20-R032A32-10L | 32,00 | 9,0 | 2,20 | 1 | 32,00 | 30,7 | 130,00 | 40,00 | 1,6 | 25900 | |
| MS20-R032A32-10M | 32,00 | 9,0 | 2,20 | 1 | 32,00 | 30,7 | 130,00 | 40,00 | 1,6 | 25900 | |
| MS20-R032A32L-10L | 32,00 | 9,0 | 2,20 | 1 | 32,00 | 30,7 | 250,00 | 65,00 | 1,6 | 11800 | |
| MS20-R040A32-10H | 40,00 | 9,0 | 1,60 | 1 | 32,00 | 38,5 | 30,0 | 170,00 | 1,6 | 22600 | |
| MS20-R040A32-10L | 40,00 | 9,0 | 1,60 | 1 | 32,00 | 38,5 | 30,0 | 170,00 | 1,6 | 22600 | |
| MS20-R040A32-10M | 40,00 | 9,0 | 1,60 | 1 | 32,00 | 38,5 | 30,0 | 170,00 | 1,6 | 22600 | |
| MS20-R040A32L-10L | 40,00 | 9,0 | 1,60 | 1 | 32,00 | 38,5 | 33,0 | 250,00 | 1,6 | 12800 |
R = правосторонний, L = левосторонний
| Код заказа | DC [дюйм] | APMX [дюйм] | RMPX [град] | CNSC | DCONMS [дюйм] | BD [дюйм] | LF [дюйм] | LU [дюйм] | TQ [фут·Н] | RPMX [об/мин] |
|---|---|---|---|---|---|---|---|---|---|---|
| MS20-AR016O16L-10L | 0,625 | 0,354 | 7,80 | 1 | 0,625 | 0,602 | 5,625 | 1,000 | 1,2 | 23100 |
| MS20-AR019O19L-10L | 0,750 | 0,354 | 5,40 | 1 | 0,750 | 0,724 | 6,500 | 1,250 | 1,2 | 19100 |
| MS20-AR025O25L-10L | 1,000 | 0,354 | 3,20 | 1 | 1,000 | 0,957 | 8,000 | 2,000 | 1,2 | 16100 |
| MS20-AR025O25L-10M | 1,000 | 0,354 | 3,20 | 1 | 1,000 | 0,957 | 8,000 | 2,000 | 1,2 | 16100 |
R = правосторонний, L = левосторонний
