Инструменты для торцевого фрезерования | CoroMill® 390

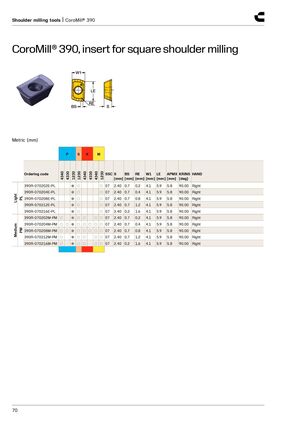

CoroMill® 390, пластина для торцевого фрезерования
Метрическая система (мм)
Легкие (PL)
| Артикул | Класс материала | SSC [мм] | S [мм] | BS [мм] | RE [мм] | W1 [мм] | LE [мм] | APMX [мм] | KRINS [град] | HAND | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | 4340 | 4330 | 1230 | 1230 | 4340 | 4330 | |||||||||||
| 390R-070202E-PL | ● | ○ | ○ | 07 | 2,40 | 0,7 | 0,2 | 4,1 | 5,9 | 5,8 | 90,00 | Right | |||||
| 390R-070204E-PL | ● | ○ | ○ | 07 | 2,40 | 0,7 | 0,4 | 4,1 | 5,9 | 5,8 | 90,00 | Right | |||||
| 390R-070208E-PL | ● | ○ | ○ | 07 | 2,40 | 0,7 | 0,8 | 4,1 | 5,9 | 5,8 | 90,00 | Right | |||||
| 390R-070212E-PL | ● | ○ | ○ | 07 | 2,40 | 0,7 | 1,2 | 4,1 | 5,9 | 5,8 | 90,00 | Right | |||||
| 390R-070216E-PL | ● | ○ | ○ | 07 | 2,40 | 0,2 | 1,6 | 4,1 | 5,9 | 5,8 | 90,00 | Right | |||||
Средние (PM)
| 390R-070202M-PM | ○ | ● | ○ | ○ | ○ | ○ | 07 | 2,40 | 0,7 | 0,2 | 4,1 | 5,9 | 5,8 | 90,00 | Right | |
| 390R-070204M-PM | ○ | ● | ○ | ○ | ○ | ○ | 07 | 2,40 | 0,7 | 0,4 | 4,1 | 5,9 | 5,8 | 90,00 | Right | |
| 390R-070208M-PM | ○ | ● | ○ | ○ | ○ | ○ | 07 | 2,40 | 0,7 | 0,8 | 4,1 | 5,9 | 5,8 | 90,00 | Right | |
| 390R-070212M-PM | ○ | ● | ○ | ○ | ○ | ○ | 07 | 2,40 | 0,7 | 1,2 | 4,1 | 5,9 | 5,8 | 90,00 | Right | |
| 390R-070216M-PM | ○ | ● | ○ | ○ | ○ | ○ | 07 | 2,40 | 0,2 | 1,6 | 4,1 | 5,9 | 5,8 | 90,00 | Right |
