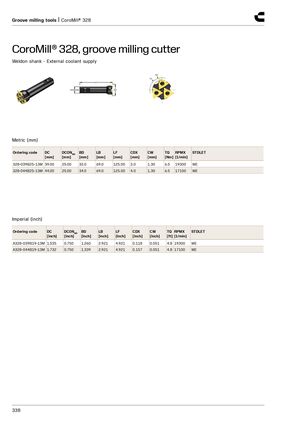

CoroMill® 328, groove milling cutter
Weldon shank - External coolant supply
CDX DC LF
DCON MS DC
Metric (mm)
| Ordering code | DC | DCONMS | BD | LB | LF | CDX | CW | TQ | RPMX | STDLET |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [Nm] | [1/min] | ||
| 328-039B25-13M | 39.00 | 25.00 | 32.0 | 69.0 | 125.00 | 3.0 | 1.30 | 6.5 | 19300 | WE |
| 328-044B25-13M | 44.00 | 25.00 | 34.0 | 69.0 | 125.00 | 4.0 | 1.30 | 6.5 | 17100 | WE |
Imperial (inch)
| Ordering code | DC | DCONMS | BD | LB | LF | CDX | CW | TQ | RPMX | STDLET |
| [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [ft] | [1/min] | ||
| A328-039B19-13M | 1.535 | 0.750 | 1.260 | 2.921 | 4.921 | 0.118 | 0.051 | 4.8 | 19300 | WE |
| A328-044B19-13M | 1.732 | 0.750 | 1.339 | 2.921 | 4.921 | 0.157 | 0.051 | 4.8 | 17100 | WE |
