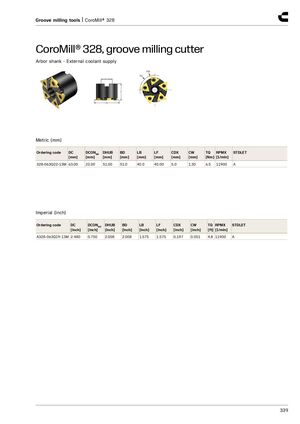

CoroMill® 328, groove milling cutter
Arbor shank - External coolant supply
CDX DC DCON MS
LF
DC
Metric (mm)
| Ordering code | DC | DCONMS | DHUB | BD | LB | LF | CDX | CW | TQ | RPMX | STDLET |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [Nm] | [1/min] | ||
| 328-063Q22-13M | 63.00 | 22.00 | 51.00 | 51.0 | 40.0 | 40.00 | 5.0 | 1.30 | 6.5 | 11900 | A |
Imperial (inch)
| Ordering code | DC | DCONMS | DHUB | BD | LB | LF | CDX | CW | TQ RPMX | STDLET |
| [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [ft] [1/min] | ||
| A328-063Q19-13M | 2.480 | 0.750 | 2.008 | 2.008 | 1.575 | 1.575 | 0.197 | 0.051 | 4.8 11900 | A |
