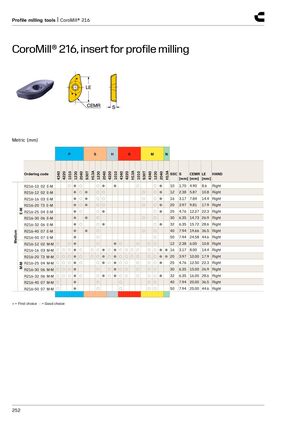

CoroMill® 216, insert for profile milling
Metric (mm)
| P | S | H | K | M | N | |||||||||||
| Ordering code | 4340 4220 1010 1230 | 2040 S30T | H13A 1230 | 2040 | 4220 | 1010 4340 4220 H13A 1010 | S30T | 4340 1230 | 2040 | H13A | SSC | S [mm] | CEMR [mm] | LE [mm] | HAND | |
| R216-10 02 E-M | ○● | ○ | ○ | ● | ● ○ | ○ | ● | 10 | 1.70 | 4.90 | 8.6 | Right | ||||
| R216-12 02 E-M | ● | ○● | ○ | ○ | ○ | ○ | ● | 12 | 2.38 | 5.87 | 10.8 | Right | ||||
| R216-16 03 E-M | ● | ○● | ○ | ○ | ○ | ○ | ● | 16 | 3.17 | 7.84 | 14.4 | Right | ||||
| R216-20 T3 E-M | ● | ○● | ○ | ○ | ○ | ○ | ● | 20 | 3.97 | 9.81 | 17.9 | Right | ||||
| E-M | R216-25 04 E-M | ● | ○ | ○ | ● | ○ | ● | 25 | 4.76 | 12.27 | 22.3 | Right | ||||
| R216-30 06 E-M | ● | ● | ○ | ○ | ○ | 30 | 6.35 | 14.73 | 26.9 | Right | ||||||
| R216-32 06 E-M | ● | ○ | ○ | ● | ○ | ● | 32 | 6.35 | 15.72 | 28.6 | Right | |||||
| um | R216-40 07 E-M | ● | ● | ○ | ○ | ○ | 40 | 7.94 | 19.66 | 36.5 | Right | |||||
| edi | R216-50 07 E-M | ● | ○ | ○ | 50 | 7.94 | 24.58 | 44.6 | Right | |||||||
| M | R216-12 02 M-M | ○ ○● | ○ | ●○ ○ | ○○ | 12 | 2.38 | 6.00 | 10.8 | Right | ||||||
| R216-16 03 M-M | ○○○● | ○ | ○○ | ● | ○ | ●○○○○ | ○○ | ● | ● | 16 | 3.17 | 8.00 | 14.4 | Right | ||
| R216-20 T3 M-M | ○○○● | ○ | ○○ | ● | ○ | ●○○○○ | ○○ | ● | ● | 20 | 3.97 | 10.00 | 17.9 | Right | ||
| -M | R216-25 04 M-M | ○○○● | ○ | ○ | ● | ○ | ●○○ ○ | ○○ | ● | 25 | 4.76 | 12.50 | 22.3 | Right | ||
| M | R216-30 06 M-M | ○○○● | ○ | ○ | ●○○ ○ | ○○ | 30 | 6.35 | 15.00 | 26.9 | Right | |||||
| R216-32 06 M-M | ○○○● | ○ | ○ | ● | ○ | ●○○ ○ | ○○ | ● | 32 | 6.35 | 16.00 | 28.6 | Right | |||
| R216-40 07 M-M | ○ ● | ○ | ○ | ○○ | 40 | 7.94 | 20.00 | 36.5 | Right | |||||||
| R216-50 07 M-M | ○ ● | ○ | ○ | ○○ | 50 | 7.94 | 25.00 | 44.6 | Right |
- = First choice = Good choice
