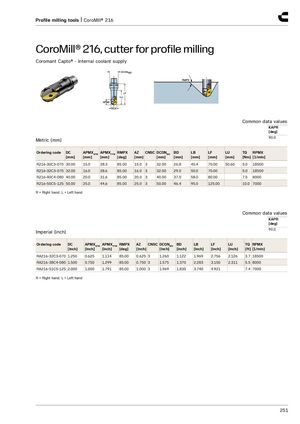

CoroMill® 216, cutter for profile milling
Coromant Capto® - Internal coolant supply
| Com | mon d | ata values KAPR [deg] | ||||||||||||
| Metric (mm) | 90.0 | |||||||||||||
| Ordering code | DC [mm] | APMXEFW [mm] | APMXFF [mm] | W RMPX [deg] | AZ [mm] | CNS | C DCONMS [mm] | BD [mm] | LB [mm] | LF [mm] | LU [mm] | TQ [Nm] | RPMX [1/min] | |
| R216-30C3-070 | 30.00 | 15.0 | 28.3 | 85.00 | 15.0 | 3 | 32.00 | 26.8 | 45.4 | 70.00 | 50.60 | 5.0 | 18500 | |
| R216-32C3-070 | 32.00 | 16.0 | 28.6 | 85.00 | 16.0 | 3 | 32.00 | 29.0 | 50.0 | 70.00 | 5.0 | 18500 | ||
| R216-40C4-080 | 40.00 | 20.0 | 31.6 | 85.00 | 20.0 | 3 | 40.00 | 37.0 | 58.0 | 80.00 | 7.5 | 8000 | ||
| R216-50C5-125 | 50.00 | 25.0 | 44.6 | 85.00 | 25.0 | 3 | 50.00 | 46.4 | 95.0 | 125.00 | 10.0 | 7000 |
R = Right hand, L = Left hand
| Common d | ata values KAPR [deg] | ||||||||||||
| mperial (inch) | 90.0 | ||||||||||||
| Ordering code | DC [inch] | APMXEF [inch] | W APMXFFW [inch] | RMPX [deg] | AZ [inch] | CNS | C DCONMS [inch] | BD [inch] | LB [inch] | LF [inch] | LU [inch] | TQ [ft] RPMX [1/min] | |
| RA216-32C3-070 | 1.250 | 0.625 | 1.114 | 85.00 | 0.625 | 3 | 1.260 | 1.122 | 1.969 | 2.756 | 2.126 | 3.7 18500 | |
| RA216-38C4-080 | 1.500 | 0.750 | 1.299 | 85.00 | 0.750 | 3 | 1.575 | 1.370 | 2.283 | 3.150 | 2.311 | 5.5 8000 | |
| RA216-51C5-125 | 2.000 | 1.000 | 1.791 | 85.00 | 1.000 | 3 | 1.969 | 1.835 | 3.740 | 4.921 | 7.4 7000 |
R = Right hand, L = Left hand
