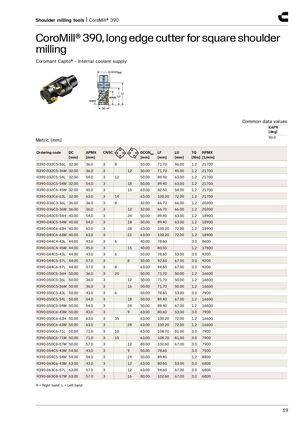

Инструменты для торцевого фрезерования | CoroMill® 390
CoroMill® 390, резец с удлиненной режущей кромкой для фрезеровки квадратных торцевых канавок
Coromant Capto® - Внутренняя подача смазочно-охлаждающей жидкости
Общие значения данных: KAPR = 90,0°
Метрические размеры (мм)
| Обозначение заказа | DC [мм] | APMX [мм] | CNSC | DCONMS [мм] | LF [мм] | LU [мм] | TQ [Нм] | RPMX [об/мин] | |
|---|---|---|---|---|---|---|---|---|---|
| R390-032C5-36L | 32,00 | 36,0 | 3 | 8 | 50,00 | 71,70 | 46,00 | 1,2 | 21700 |
| R390-032C5-36M | 32,00 | 36,0 | 3 | 12 | 50,00 | 71,70 | 45,00 | 1,2 | 21700 |
| R390-032C5-54L | 32,00 | 54,0 | 3 | 12 | 50,00 | 89,40 | 63,00 | 1,2 | 21700 |
| R390-032C5-54M | 32,00 | 54,0 | 3 | 18 | 50,00 | 89,40 | 63,00 | 1,2 | 21700 |
| R390-032C6-45M | 32,00 | 45,0 | 3 | 15 | 63,00 | 82,50 | 54,00 | 1,2 | 21700 |
| R390-032C6-63L | 32,00 | 63,0 | 3 | 14 | 63,00 | 100,20 | 72,00 | 1,2 | 21700 |
| R390-036C3-36L | 36,00 | 36,0 | 3 | 8 | 32,00 | 66,70 | 66,00 | 1,2 | 20200 |
| R390-036C3-36M | 36,00 | 36,0 | 3 | 12 | 32,00 | 66,70 | 66,00 | 1,2 | 20200 |
| R390-040C5-54H | 40,00 | 54,0 | 3 | 24 | 50,00 | 89,40 | 63,00 | 1,2 | 18900 |
| R390-040C5-54M | 40,00 | 54,0 | 3 | 18 | 50,00 | 89,40 | 63,00 | 1,2 | 18900 |
| R390-040C6-63H | 40,00 | 63,0 | 3 | 28 | 63,00 | 100,20 | 72,00 | 1,2 | 18900 |
| R390-040C6-63M | 40,00 | 63,0 | 3 | 21 | 63,00 | 100,20 | 72,00 | 1,2 | 18900 |
| R390-044C4-43L | 44,00 | 43,0 | 3 | 6 | 40,00 | 78,60 | — | 3,0 | 8600 |
| R390-044C4-45M | 44,00 | 45,0 | 3 | 15 | 40,00 | 80,50 | — | 1,2 | 17800 |
| R390-044C5-43L | 44,00 | 43,0 | 3 | 6 | 50,00 | 78,60 | 53,00 | 3,0 | 9200 |
| R390-044C5-57L | 44,00 | 57,0 | 3 | 8 | 50,00 | 92,60 | 67,00 | 3,0 | 9200 |
| R390-044C6-57L | 44,00 | 57,0 | 3 | 8 | 63,00 | 94,60 | 67,00 | 3,0 | 9200 |
| R390-050C5-36H | 50,00 | 36,0 | 3 | 20 | 50,00 | 71,70 | 50,00 | 1,2 | 16600 |
| R390-050C5-36L | 50,00 | 36,0 | 3 | 12 | 50,00 | 71,70 | 50,00 | 1,2 | 16600 |
| R390-050C5-36M | 50,00 | 36,0 | 3 | 16 | 50,00 | 71,70 | 50,00 | 1,2 | 16600 |
| R390-050C5-43L | 50,00 | 43,0 | 3 | 6 | 50,00 | 78,60 | 53,00 | 3,0 | 7900 |
| R390-050C5-54L | 50,00 | 54,0 | 3 | 18 | 50,00 | 89,40 | 67,00 | 1,2 | 16600 |
| R390-050C5-54M | 50,00 | 54,0 | 3 | 24 | 50,00 | 89,40 | 67,00 | 1,2 | 16600 |
| R390-050C6-43M | 50,00 | 43,0 | 3 | 9 | 63,00 | 80,60 | 53,00 | 3,0 | 7900 |
| R390-050C6-63H | 50,00 | 63,0 | 3 | 35 | 63,00 | 100,20 | 72,00 | 1,2 | 16600 |
| R390-050C6-63M | 50,00 | 63,0 | 3 | 28 | 63,00 | 100,20 | 72,00 | 1,2 | 16600 |
| R390-050C6-71L | 50,00 | 71,0 | 3 | 10 | 63,00 | 108,70 | 81,00 | 3,0 | 7900 |
| R390-050C6-71M | 50,00 | 71,0 | 3 | 15 | 63,00 | 108,70 | 81,00 | 3,0 | 7900 |
| R390-050C8-57M | 50,00 | 57,0 | 3 | 12 | 80,00 | 102,60 | 67,00 | 3,0 | 7900 |
| R390-054C5-43M | 54,00 | 43,0 | 3 | 9 | 50,00 | 78,60 | — | 3,0 | 7500 |
| R390-054C5-54M | 54,00 | 54,0 | 3 | 24 | 50,00 | 89,40 | — | 1,2 | 8800 |
| R390-063C6-43M | 63,00 | 43,0 | 3 | 12 | 63,00 | 80,60 | 53,00 | 3,0 | 6800 |
| R390-063C6-57L | 63,00 | 57,0 | 3 | 12 | 63,00 | 94,60 | 67,00 | 3,0 | 6800 |
| R390-063C8-57M | 63,00 | 57,0 | 3 | 16 | 80,00 | 102,60 | 67,00 | 3,0 | 6800 |
R = правое исполнение, L = левое исполнение
