Инструменты для фрезерования торцов | CoroMill® 390

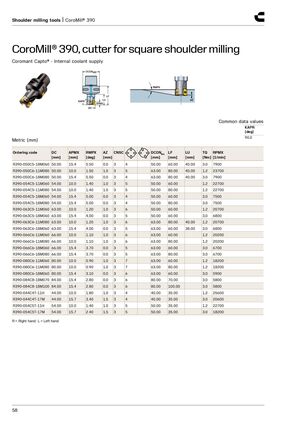

CoroMill® 390, фреза для обработки прямых торцевых поверхностей
Coromant Capto® — внутренняя подача СОЖ
Общие технические параметры: KAPR = 90,0°
Метрические размеры (мм) — продолжение
| Артикул | DC [мм] | APMX [мм] | RMPX [град] | AZ [мм] | CNSC | DCONMS [мм] | LF [мм] | LU [мм] | TQ [Нм] | RPMX [об/мин] |
|---|---|---|---|---|---|---|---|---|---|---|
| R390-050C5-18M060 | 50,00 | 15,4 | 5,50 | 0,0 | 3 | 50,00 | 60,00 | 40,00 | 3,0 | 7900 |
| R390-050C6-11M080 | 50,00 | 10,0 | 1,50 | 1,0 | 3 | 63,00 | 80,00 | 40,00 | 1,2 | 23700 |
| R390-050C6-18M080 | 50,00 | 15,4 | 5,50 | 0,0 | 3 | 63,00 | 80,00 | 40,00 | 3,0 | 7900 |
| R390-054C5-11M060 | 54,00 | 10,0 | 1,40 | 1,0 | 3 | 50,00 | 60,00 | 1,2 | 22700 | |
| R390-054C5-11M080 | 54,00 | 10,0 | 1,40 | 1,0 | 3 | 50,00 | 80,00 | 1,2 | 22700 | |
| R390-054C5-18M060 | 54,00 | 15,4 | 5,00 | 0,0 | 3 | 50,00 | 60,00 | 3,0 | 7500 | |
| R390-054C5-18M080 | 54,00 | 15,4 | 5,00 | 0,0 | 3 | 50,00 | 80,00 | 3,0 | 7500 | |
| R390-063C5-11M060 | 63,00 | 10,0 | 1,20 | 1,0 | 3 | 50,00 | 60,00 | 1,2 | 20700 | |
| R390-063C5-18M060 | 63,00 | 15,4 | 4,00 | 0,0 | 3 | 50,00 | 60,00 | 3,0 | 6800 | |
| R390-063C6-11M080 | 63,00 | 10,0 | 1,20 | 1,0 | 3 | 63,00 | 80,00 | 40,00 | 1,2 | 20700 |
| R390-063C6-18M060 | 63,00 | 15,4 | 4,00 | 0,0 | 3 | 63,00 | 60,00 | 38,00 | 3,0 | 6800 |
| R390-066C6-11M060 | 66,00 | 10,0 | 1,10 | 1,0 | 3 | 63,00 | 60,00 | 1,2 | 20200 | |
| R390-066C6-11M080 | 66,00 | 10,0 | 1,10 | 1,0 | 3 | 63,00 | 80,00 | 1,2 | 20200 | |
| R390-066C6-18M060 | 66,00 | 15,4 | 3,70 | 0,0 | 3 | 63,00 | 60,00 | 3,0 | 6700 | |
| R390-066C6-18M080 | 66,00 | 15,4 | 3,70 | 0,0 | 3 | 63,00 | 80,00 | 3,0 | 6700 | |
| R390-080C6-11M060 | 80,00 | 10,0 | 0,90 | 1,0 | 3 | 63,00 | 60,00 | 1,2 | 18200 | |
| R390-080C6-11M080 | 80,00 | 10,0 | 0,90 | 1,0 | 3 | 63,00 | 80,00 | 1,2 | 18200 | |
| R390-080C6-18M060 | 80,00 | 15,4 | 3,10 | 0,0 | 3 | 63,00 | 60,00 | 3,0 | 5900 | |
| R390-084C8-18M070 | 84,00 | 15,4 | 2,80 | 0,0 | 3 | 80,00 | 70,00 | 3,0 | 5800 | |
| R390-084C8-18M100 | 84,00 | 15,4 | 2,80 | 0,0 | 3 | 80,00 | 100,00 | 3,0 | 5800 | |
| R390-044C4T-11H | 44,00 | 10,0 | 1,80 | 1,0 | 3 | 40,00 | 35,00 | 1,2 | 25600 | |
| R390-044C4T-17M | 44,00 | 15,7 | 3,40 | 1,5 | 3 | 40,00 | 35,00 | 3,0 | 20600 | |
| R390-054C5T-11H | 54,00 | 10,0 | 1,40 | 1,0 | 3 | 50,00 | 35,00 | 1,2 | 22700 | |
| R390-054C5T-17M | 54,00 | 15,7 | 2,40 | 1,5 | 3 | 50,00 | 35,00 | 3,0 | 18200 |
Примечание: R = правое вращение, L = левое вращение
