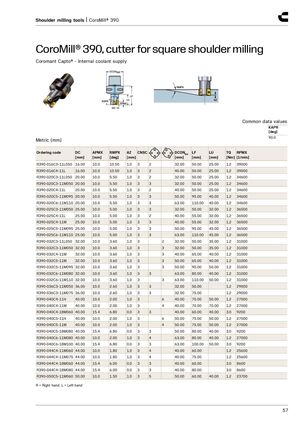

Инструменты для фрезерования торцов | CoroMill® 390
CoroMill® 390, фреза для обработки прямых торцевых поверхностей
Coromant Capto® — внутренняя подача СОЖ
Общие технические параметры: KAPR = 90,0°
Метрические размеры (мм)
| Артикул | DC [мм] | APMX [мм] | RMPX [град] | AZ [мм] | CNSC | DCONMS [мм] | LF [мм] | LU [мм] | TQ [Нм] | RPMX [об/мин] |
|---|---|---|---|---|---|---|---|---|---|---|
| R390-016C3-11L050 | 16,00 | 10,0 | 10,50 | 1,0 | 3 | 32,00 | 50,00 | 25,00 | 1,2 | 39000 |
| R390-016C4-11L | 16,00 | 10,0 | 10,50 | 1,0 | 3 | 40,00 | 50,00 | 25,00 | 1,2 | 39000 |
| R390-020C3-11L050 | 20,00 | 10,0 | 5,50 | 1,0 | 3 | 32,00 | 50,00 | 25,00 | 1,2 | 34600 |
| R390-020C3-11M050 | 20,00 | 10,0 | 5,50 | 1,0 | 3 | 32,00 | 50,00 | 25,00 | 1,2 | 34600 |
| R390-020C4-11L | 20,00 | 10,0 | 5,50 | 1,0 | 3 | 40,00 | 50,00 | 25,00 | 1,2 | 34600 |
| R390-020C5-11M095 | 20,00 | 10,0 | 5,50 | 1,0 | 3 | 50,00 | 95,00 | 40,00 | 1,2 | 34600 |
| R390-020C6-11M110 | 20,00 | 10,0 | 5,50 | 1,0 | 3 | 63,00 | 110,00 | 40,00 | 1,2 | 34600 |
| R390-025C3-11M050 | 25,00 | 10,0 | 5,00 | 1,0 | 3 | 32,00 | 50,00 | 32,00 | 1,2 | 36500 |
| R390-025C4-11L | 25,00 | 10,0 | 5,00 | 1,0 | 3 | 40,00 | 55,00 | 32,00 | 1,2 | 36500 |
| R390-025C4-11M | 25,00 | 10,0 | 5,00 | 1,0 | 3 | 40,00 | 55,00 | 32,00 | 1,2 | 36500 |
| R390-025C5-11M095 | 25,00 | 10,0 | 5,00 | 1,0 | 3 | 50,00 | 95,00 | 45,00 | 1,2 | 36500 |
| R390-025C6-11M110 | 25,00 | 10,0 | 5,00 | 1,0 | 3 | 63,00 | 110,00 | 45,00 | 1,2 | 36500 |
| R390-032C3-11L050 | 32,00 | 10,0 | 3,60 | 1,0 | 3 | 32,00 | 50,00 | 35,00 | 1,2 | 31000 |
| R390-032C3-11M050 | 32,00 | 10,0 | 3,60 | 1,0 | 3 | 32,00 | 50,00 | 35,00 | 1,2 | 31000 |
| R390-032C4-11M | 32,00 | 10,0 | 3,60 | 1,0 | 3 | 40,00 | 65,00 | 40,00 | 1,2 | 31000 |
| R390-032C5-11M | 32,00 | 10,0 | 3,60 | 1,0 | 3 | 50,00 | 65,00 | 40,00 | 1,2 | 31000 |
| R390-032C5-11M095 | 32,00 | 10,0 | 3,60 | 1,0 | 3 | 50,00 | 95,00 | 50,00 | 1,2 | 31000 |
| R390-032C6-11M080 | 32,00 | 10,0 | 3,60 | 1,0 | 3 | 63,00 | 80,00 | 40,00 | 1,2 | 31000 |
| R390-032C6-11M110 | 32,00 | 10,0 | 3,60 | 1,0 | 3 | 63,00 | 110,00 | 50,00 | 1,2 | 31000 |
| R390-036C3-11M050 | 36,00 | 10,0 | 2,60 | 1,0 | 3 | 32,00 | 50,00 | 1,2 | 29000 | |
| R390-036C3-11M075 | 36,00 | 10,0 | 2,60 | 1,0 | 3 | 32,00 | 75,00 | 1,2 | 29000 | |
| R390-040C4-11H | 40,00 | 10,0 | 2,00 | 1,0 | 3 | 40,00 | 70,00 | 50,00 | 1,2 | 27000 |
| R390-040C4-11M | 40,00 | 10,0 | 2,00 | 1,0 | 3 | 40,00 | 70,00 | 70,00 | 1,2 | 27000 |
| R390-040C4-18M060 | 40,00 | 15,4 | 6,80 | 0,0 | 3 | 40,00 | 60,00 | 40,00 | 3,0 | 9200 |
| R390-040C5-11H | 40,00 | 10,0 | 2,00 | 1,0 | 3 | 50,00 | 75,00 | 50,00 | 1,2 | 27000 |
| R390-040C5-11M | 40,00 | 10,0 | 2,00 | 1,0 | 3 | 50,00 | 75,00 | 50,00 | 1,2 | 27000 |
| R390-040C5-18M080 | 40,00 | 15,4 | 6,80 | 0,0 | 3 | 50,00 | 80,00 | 40,00 | 3,0 | 9200 |
| R390-040C6-11M080 | 40,00 | 10,0 | 2,00 | 1,0 | 3 | 63,00 | 80,00 | 40,00 | 1,2 | 27000 |
| R390-040C6-18M100 | 40,00 | 15,4 | 6,80 | 0,0 | 3 | 63,00 | 100,00 | 50,00 | 3,0 | 9200 |
| R390-044C4-11M060 | 44,00 | 10,0 | 1,80 | 1,0 | 3 | 40,00 | 60,00 | 1,2 | 25600 | |
| R390-044C4-11M075 | 44,00 | 10,0 | 1,80 | 1,0 | 3 | 40,00 | 75,00 | 1,2 | 25600 | |
| R390-044C4-18M060 | 44,00 | 15,4 | 6,00 | 0,0 | 3 | 40,00 | 60,00 | 3,0 | 8600 | |
| R390-044C4-18M080 | 44,00 | 15,4 | 6,00 | 0,0 | 3 | 40,00 | 80,00 | 3,0 | 8600 | |
| R390-050C5-11M060 | 50,00 | 10,0 | 1,50 | 1,0 | 3 | 50,00 | 60,00 | 40,00 | 1,2 | 23700 |
Примечание: R = правое вращение, L = левое вращение
