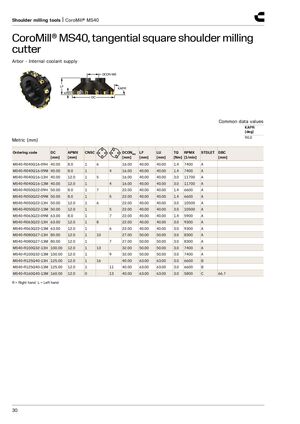

Shoulder milling tools | CoroMill® MS40 CoroMill® MS40, tangential square shoulder milling cutter Arbor - Internal coolant supply DCON MS LF KAPR APMX DC Common data values KAPR [deg] 90.0 Metric (mm) Ordering code DC APMX CNSC DCONMS LF LU TQ RPMX STDLET DBC [mm] [mm] [mm] [mm] [mm] [Nm] [1/min] [mm] MS40-R040Q16-09H 40.00 8.0 1 6 16.00 40.00 40.00 1.4 7400 A MS40-R040Q16-09M 40.00 8.0 1 4 16.00 40.00 40.00 1.4 7400 A MS40-R040Q16-13H 40.00 12.0 1 5 16.00 40.00 40.00 3.0 11700 A MS40-R040Q16-13M 40.00 12.0 1 4 16.00 40.00 40.00 3.0 11700 A MS40-R050Q22-09H 50.00 8.0 1 7 22.00 40.00 40.00 1.4 6600 A MS40-R050Q22-09M 50.00 8.0 1 5 22.00 40.00 40.00 1.4 6600 A MS40-R050Q22-13H 50.00 12.0 1 6 22.00 40.00 40.00 3.0 10500 A MS40-R050Q22-13M 50.00 12.0 1 5 22.00 40.00 40.00 3.0 10500 A MS40-R063Q22-09M 63.00 8.0 1 7 22.00 40.00 40.00 1.4 5900 A MS40-R063Q22-13H 63.00 12.0 1 8 22.00 40.00 40.00 3.0 9300 A MS40-R063Q22-13M 63.00 12.0 1 6 22.00 40.00 40.00 3.0 9300 A MS40-R080Q27-13H 80.00 12.0 1 10 27.00 50.00 50.00 3.0 8300 A MS40-R080Q27-13M 80.00 12.0 1 7 27.00 50.00 50.00 3.0 8300 A MS40-R100Q32-13H 100.00 12.0 1 13 32.00 50.00 50.00 3.0 7400 A MS40-R100Q32-13M 100.00 12.0 1 9 32.00 50.00 50.00 3.0 7400 A MS40-R125Q40-13H 125.00 12.0 1 16 40.00 63.00 63.00 3.0 6600 B MS40-R125Q40-13M 125.00 12.0 1 11 40.00 63.00 63.00 3.0 6600 B MS40-R160Q40-13M 160.00 12.0 0 13 40.00 63.00 63.00 3.0 5800 C 66.7 R = Right hand, L = Left hand 30
