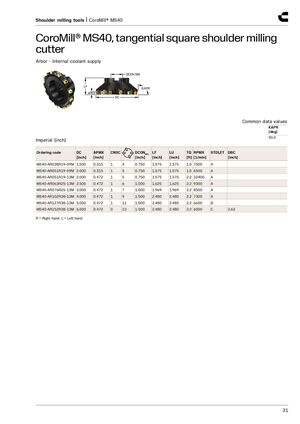

Shoulder milling tools | CoroMill® MS40 CoroMill® MS40, tangential square shoulder milling cutter Arbor - Internal coolant supply DCON MS LF KAPR APMX DC Common data values KAPR [deg] 90.0 Imperial (inch) Ordering code DC APMX CNSC DCONMS LF LU TQ RPMX STDLET DBC [inch] [inch] [inch] [inch] [inch] [ft] [1/min] [inch] MS40-AR038R19-09M 1.500 0.315 1 4 0.750 1.575 1.575 1.0 7500 A MS40-AR051R19-09M 2.000 0.315 1 5 0.750 1.575 1.575 1.0 6500 A MS40-AR051R19-13M 2.000 0.472 1 5 0.750 1.575 1.575 2.2 10400 A MS40-AR063R25-13M 2.500 0.472 1 6 1.000 1.625 1.625 2.2 9300 A MS40-AR076R25-13M 3.000 0.472 1 7 1.000 1.969 1.969 2.2 8500 A MS40-AR102R38-13M 4.000 0.472 1 9 1.500 2.480 2.480 2.2 7300 A MS40-AR127R38-13M 5.000 0.472 1 11 1.500 2.480 2.480 2.2 6600 B MS40-AR152R38-13M 6.000 0.472 0 13 1.500 2.480 2.480 2.2 6000 C 2.63 R = Right hand, L = Left hand 31
