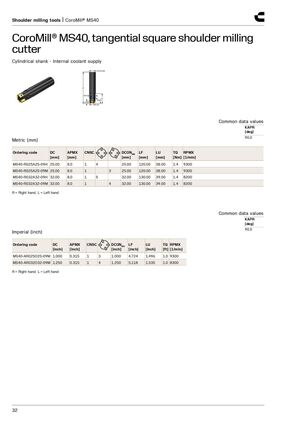

Инструменты для торцевого фрезерования | CoroMill® MS40
CoroMill® MS40, тангенциальная фреза для фрезерования прямых торцевых поверхностей
Цилиндрический хвостовик — внутренняя подача СОЖ
| Метрический (мм) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Артикул | DC [мм] | APMX [мм] | CNSC | DCON MS [мм] | LF [мм] | LU [мм] | TQ [Нм] | RPMX [об/мин] | |
| MS40-R025A25-09H | 25.00 | 8.0 | 1 | 4 | 25.00 | 120.00 | 38.00 | 1.4 | 9300 |
| MS40-R025A25-09M | 25.00 | 8.0 | 1 | 3 | 25.00 | 120.00 | 38.00 | 1.4 | 9300 |
| MS40-R032A32-09H | 32.00 | 8.0 | 1 | 5 | 32.00 | 130.00 | 39.00 | 1.4 | 8200 |
| MS40-R032A32-09M | 32.00 | 8.0 | 1 | 4 | 32.00 | 130.00 | 39.00 | 1.4 | 8200 |
П = Правый, Л = Левый
| Общие значения данных | |
|---|---|
| KAPR [град] | |
| 90.0 | |
| Британская система (дюйм) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Артикул | DC [дюйм] | APMX [дюйм] | CNSC | DCON MS [дюйм] | LF [дюйм] | LU [дюйм] | TQ [фунт-сила·фут] | RPMX [об/мин] | |
| MS40-AR025O25-09M | 1.000 | 0.315 | 1 | 3 | 1.000 | 4.724 | 1.496 | 1.0 | 9300 |
| MS40-AR032O32-09M | 1.250 | 0.315 | 1 | 4 | 1.250 | 5.118 | 1.535 | 1.0 | 8300 |
П = Правый, Л = Левый
| Общие значения данных | |
|---|---|
| KAPR [град] | |
| 90.0 | |
