Инструменты для фрезерования уступов | CoroMill® MS20

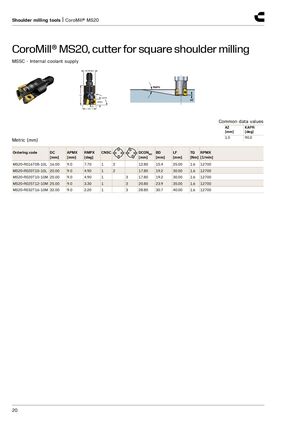

CoroMill® MS20, фреза для фрезерования прямоугольных уступов
MSSC - Внутренняя подача СОЖ
Стандартные значения параметров:
AZ: 1.0 [мм], KAPR: 90.0 [град]
Метрические размеры (мм)
| Артикул | DC [мм] | APMX [мм] | RMPX [град] | CNSC | DCONMS [мм] | BD [мм] | LF [мм] | TQ [Нм] | RPMX [1/мин] | |
|---|---|---|---|---|---|---|---|---|---|---|
| MS20-R016T08-10L | 16.00 | 9.0 | 7.70 | 1 | 2 | 12.80 | 15.4 | 25.00 | 1.6 | 12700 |
| MS20-R020T10-10L | 20.00 | 9.0 | 4.90 | 1 | 2 | 17.80 | 19.2 | 30.00 | 1.6 | 12700 |
| MS20-R020T10-10M | 20.00 | 9.0 | 4.90 | 1 | 3 | 17.80 | 19.2 | 30.00 | 1.6 | 12700 |
| MS20-R025T12-10M | 25.00 | 9.0 | 3.30 | 1 | 3 | 20.80 | 23.9 | 35.00 | 1.6 | 12700 |
| MS20-R032T16-10M | 32.00 | 9.0 | 2.20 | 1 | 3 | 28.80 | 30.7 | 40.00 | 1.6 | 12700 |
