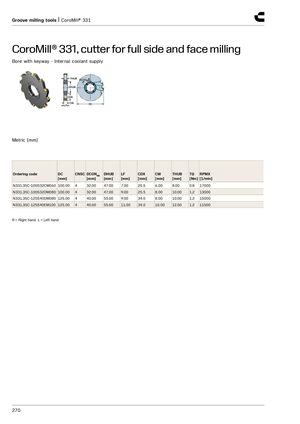

CoroMill® 331, cutter for full side and face milling
Bore with keyway - Internal coolant supply
Metric (mm)
| Ordering code | DC | CNSC DCONMS | DHUB | LF | CDX | CW | THUB | TQ | RPMX |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [Nm] | [1/min] | |
| N331.35C-100S32CM060 | 100.00 | 4 32.00 | 47.00 | 7.00 | 25.5 | 6.00 | 8.00 | 0.8 | 17000 |
| N331.35C-100S32DM080 | 100.00 | 4 32.00 | 47.00 | 9.00 | 25.5 | 8.00 | 10.00 | 1.2 | 13000 |
| N331.35C-125S40DM080 | 125.00 | 4 40.00 | 55.00 | 9.00 | 34.0 | 8.00 | 10.00 | 1.2 | 15000 |
| N331.35C-125S40EM100 | 125.00 | 4 40.00 | 55.00 | 11.00 | 34.0 | 10.00 | 12.00 | 1.2 | 11500 |
R = Right hand, L = Left hand
