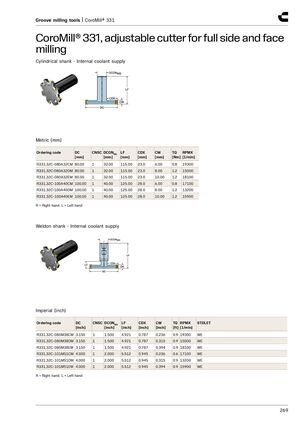

milling
Cylindrical shank - Internal coolant supply
Metric (mm)
| Ordering code | DC [mm] | CNSC | DCONMS [mm] | LF [mm] | CDX [mm] | CW [mm] | TQ [Nm] | RPMX [1/min] |
| R331.32C-080A32CM | 80.00 | 1 | 32.00 | 115.00 | 23.0 | 6.00 | 0.8 | 19300 |
| R331.32C-080A32DM | 80.00 | 1 | 32.00 | 115.00 | 23.0 | 8.00 | 1.2 | 15000 |
| R331.32C-080A32EM | 80.00 | 1 | 32.00 | 115.00 | 23.0 | 10.00 | 1.2 | 18100 |
| R331.32C-100A40CM | 100.00 | 1 | 40.00 | 125.00 | 28.0 | 6.00 | 0.8 | 17100 |
| R331.32C-100A40DM | 100.00 | 1 | 40.00 | 125.00 | 28.0 | 8.00 | 1.2 | 13200 |
| R331.32C-100A40EM | 100.00 | 1 | 40.00 | 125.00 | 28.0 | 10.00 | 1.2 | 15900 |
R = Right hand, L = Left hand
Weldon shank - Internal coolant supply
Imperial (inch)
| Ordering code | DC [inch] | CNSC | DCONMS [inch] | LF [inch] | CDX [inch] | CW [inch] | TQ [ft] | RPMX [1/min] | STDLET |
| R331.32C-080M38CM | 3.150 | 1 | 1.500 | 4.921 | 0.787 | 0.236 | 0.9 | 19300 | WE |
| R331.32C-080M38DM | 3.150 | 1 | 1.500 | 4.921 | 0.787 | 0.315 | 0.9 | 15000 | WE |
| R331.32C-080M38EM | 3.150 | 1 | 1.500 | 4.921 | 0.787 | 0.394 | 0.9 | 18100 | WE |
| R331.32C-101M51CM | 4.000 | 1 | 2.000 | 5.512 | 0.945 | 0.236 | 0.6 | 17100 | WE |
| R331.32C-101M51DM | 4.000 | 1 | 2.000 | 5.512 | 0.945 | 0.315 | 0.9 | 13200 | WE |
| R331.32C-101M51EM | 4.000 | 1 | 2.000 | 5.512 | 0.945 | 0.394 | 0.9 | 15900 | WE |
R = Right hand, L = Left hand
