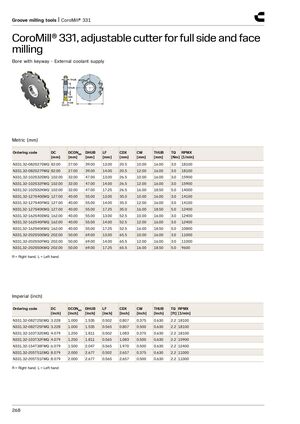

Фрезерный инструмент Sandvik 2026 - страница 272
Навигация
Каталог Sandvik токарные инструменты 2017
Каталог Sandvik цельный режущий инструмент 2018
Дополнение к каталогам Sandvik 2020.2
Инструмент для отрезки и обработки канавок Sandvik 2026
Каталог Sandvik инструменты для автоматов продольного точения 2018
Каталог Sandvik базовые наборы инструментов для новых станков - Selection guide
- Shoulder milling tools
- CoroMill® MS20
- CoroMill® MS20, cutter for square shoulder milling
- CoroMill® MS20, Silent Tools™ cutter for square shoulder milling
- CoroMill® MS20, cutter for square shoulder milling
- CoroMill® MS20, insert for milling
- CoroMill® MS40
- CoroMill® MS40, tangential square shoulder milling cutter
- CoroMill® MS40, insert for milling
- CoroMill® MS60
- CoroMill® MS60, square shoulder milling cutter
- CoroMill® MS60, insert for milling
- CoroMill® 390
- CoroMill® 390, cutter for square shoulder milling
- CoroMill® 390, long edge cutter for square shoulder milling
- CoroMill® 390, Silent Tools™ cutter for square shoulder milling
- CoroMill® 390, insert for milling
- CoroMill® 390, insert for square shoulder milling
- CoroMill® 390, insert for milling
- CoroMill® 490
- CoroMill® 490, cutter for square shoulder milling
- CoroMill® 490, insert for milling
- Face milling tools
- CoroMill® MF80
- CoroMill® MF80, face milling cutter
- CoroMill® MF80, insert for milling
- CoroMill® 245
- CoroMill® 245, cutter for face milling
- CoroMill® 245, insert for milling
- CoroMill® 345
- CoroMill® 345, cutter for face milling
- CoroMill® 345, insert for milling
- CoroMill® 745
- CoroMill® 745, cutter for face milling
- CoroMill® 745, insert for milling
- CoroMill® 365
- CoroMill® 365, cutter for face milling
- CoroMill® 365, insert for milling
- CoroMill® Century
- CoroMill® Century, cutter for face milling
- CoroMill® Century, insert for milling
- High feed milling tools
- CoroMill® MH20
- CoroMill® MH20, cutter for high feed milling
- CoroMill® MH20, insert for milling
- CoroMill® 210
- CoroMill® 210, cutter for high feed milling
- CoroMill® 210, insert for milling
- CoroMill® 419
- CoroMill® 419, cutter for high feed milling
- CoroMill® 419, insert for milling
- Profile milling tools
- CoroMill® MR80
- CoroMill® MR80, face milling cutter
- CoroMill® MR80, insert for milling
- CoroMill® 300
- CoroMill® 300, cutter for profile milling
- CoroMill® 300, insert for milling
- CoroMill® 200
- CoroMill® 200, cutter for profile milling
- CoroMill® 200, insert for milling
- CoroMill® 216
- CoroMill® 216, cutter for profile milling
- CoroMill® 216, insert for profile milling
- Groove milling tools
- CoroMill® 331
- CoroMill® 331, adjustable disc cutter for full side and face milling
- CoroMill® 331, adjustable cutter for full side and face milling
- CoroMill® 331, cutter for full side and face milling
- CoroMill® 331, adjustable cutter for half side and face milling
- CoroMill® 331 adjustable half side and face disc milling cutter
- CoroMill® 331, adjustable cutter for half side and back face milling
- CoroMill® 331, adjustable double half side and face disc milling cutter
- CoroMill® 331, insert for side and face milling
- CoroMill® QD
- CoroMill® QD, cutter for grooving and parting off
- CoroMill® QD, insert for grooving
- CoroMill® 327
- Adaptor with cylindrical shank coupling to CoroMill® 327
- Adaptor with Weldon coupling to CoroMill® 327
- Adaptor with Coromant® EH coupling to CoroMill® 327
- Adaptor with ER coupling to CoroMill® 327
- CoroMill® 327, solid carbide head for grooving
- CoroMill® 327, solid carbide head for thread milling
- CoroMill® 327, solid carbide head for chamfering
- CoroMill® 328
- CoroMill® 328, groove milling cutter
- CoroMill® 328, insert for groove milling
- CoroMill® 328, insert for thread milling
- General information
- Coolant supply information
- Cutting tool parameters according to ISO 13399
milling
Bore with keyway - External coolant supply
Metric (mm)
| Ordering code DC [mm] | DCONMS [mm] | DHUB [mm] | LF [mm] | CDX [mm] | CW [mm] | THUB [mm] | TQ [Nm] | RPMX [1/min] |
| N331.32-082S27EMQ 82.00 | 27.00 | 39.00 | 13.00 | 20.5 | 10.00 | 16.00 | 3.0 | 18100 |
| N331.32-082S27FMQ 82.00 | 27.00 | 39.00 | 14.00 | 20.5 | 12.00 | 16.00 | 3.0 | 18100 |
| N331.32-102S32EMQ 102.00 | 32.00 | 47.00 | 13.00 | 26.5 | 10.00 | 16.00 | 3.0 | 15900 |
| N331.32-102S32FMQ 102.00 | 32.00 | 47.00 | 14.00 | 26.5 | 12.00 | 16.00 | 3.0 | 15900 |
| N331.32-102S32KMQ 102.00 | 32.00 | 47.00 | 17.25 | 26.5 | 16.00 | 18.50 | 5.0 | 14000 |
| N331.32-127S40EMQ 127.00 | 40.00 | 55.00 | 13.00 | 35.0 | 10.00 | 16.00 | 3.0 | 14100 |
| N331.32-127S40FMQ 127.00 | 40.00 | 55.00 | 14.00 | 35.0 | 12.00 | 16.00 | 3.0 | 14100 |
| N331.32-127S40KMQ 127.00 | 40.00 | 55.00 | 17.25 | 35.0 | 16.00 | 18.50 | 5.0 | 12400 |
| N331.32-162S40EMQ 162.00 | 40.00 | 55.00 | 13.00 | 52.5 | 10.00 | 16.00 | 3.0 | 12400 |
| N331.32-162S40FMQ 162.00 | 40.00 | 55.00 | 14.00 | 52.5 | 12.00 | 16.00 | 3.0 | 12400 |
| N331.32-162S40KMQ 162.00 | 40.00 | 55.00 | 17.25 | 52.5 | 16.00 | 18.50 | 5.0 | 10800 |
| N331.32-202S50EMQ 202.00 | 50.00 | 69.00 | 13.00 | 65.5 | 10.00 | 16.00 | 3.0 | 11000 |
| N331.32-202S50FMQ 202.00 | 50.00 | 69.00 | 14.00 | 65.5 | 12.00 | 16.00 | 3.0 | 11000 |
| N331.32-202S50KMQ 202.00 | 50.00 | 69.00 | 17.25 | 65.5 | 16.00 | 18.50 | 5.0 | 9600 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | DC [inch] | DCONMS [inch] | DHUB [inch] | LF [inch] | CDX [inch] | CW [inch] | THUB [inch] | TQ [ft] | RPMX [1/min] |
| N331.32-082T25EMQ | 3.228 | 1.000 | 1.535 | 0.502 | 0.807 | 0.375 | 0.630 | 2.2 | 18100 |
| N331.32-082T25FMQ | 3.228 | 1.000 | 1.535 | 0.565 | 0.807 | 0.500 | 0.630 | 2.2 | 18100 |
| N331.32-103T32EMQ | 4.079 | 1.250 | 1.811 | 0.502 | 1.083 | 0.375 | 0.630 | 2.2 | 18100 |
| N331.32-103T32FMQ | 4.079 | 1.250 | 1.811 | 0.565 | 1.083 | 0.500 | 0.630 | 2.2 | 15900 |
| N331.32-154T38FMQ | 6.079 | 1.500 | 2.047 | 0.565 | 1.970 | 0.500 | 0.630 | 2.2 | 12400 |
| N331.32-205T51EMQ | 8.079 | 2.000 | 2.677 | 0.502 | 2.657 | 0.375 | 0.630 | 2.2 | 11000 |
| N331.32-205T51FMQ | 8.079 | 2.000 | 2.677 | 0.565 | 2.657 | 0.500 | 0.630 | 2.2 | 11000 |
R = Right hand, L = Left hand
