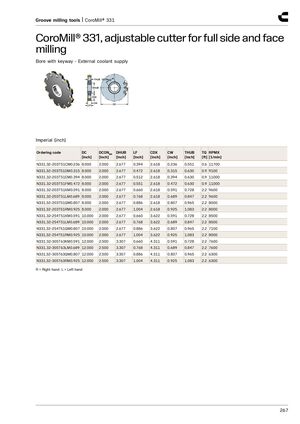

milling
Bore with keyway - External coolant supply
Imperial (inch)
| Ordering code | DC [inch] | DCONMS [inch] | DHUB [inch] | LF [inch] | CDX [inch] | CW [inch] | THUB [inch] | TQ [ft] RPMX [1/min] |
| N331.32-203T51CM0.236 | 8.000 | 2.000 | 2.677 | 0.394 | 2.618 | 0.236 | 0.551 | 0.6 11700 |
| N331.32-203T51DM0.315 | 8.000 | 2.000 | 2.677 | 0.472 | 2.618 | 0.315 | 0.630 | 0.9 9100 |
| N331.32-203T51EM0.394 | 8.000 | 2.000 | 2.677 | 0.512 | 2.618 | 0.394 | 0.630 | 0.9 11000 |
| N331.32-203T51FM0.472 | 8.000 | 2.000 | 2.677 | 0.551 | 2.618 | 0.472 | 0.630 | 0.9 11000 |
| N331.32-203T51KM0.591 | 8.000 | 2.000 | 2.677 | 0.660 | 2.618 | 0.591 | 0.728 | 2.2 9600 |
| N331.32-203T51LM0.689 | 8.000 | 2.000 | 2.677 | 0.768 | 2.618 | 0.689 | 0.847 | 2.2 9600 |
| N331.32-203T51QM0.807 | 8.000 | 2.000 | 2.677 | 0.886 | 2.618 | 0.807 | 0.965 | 2.2 8000 |
| N331.32-203T51RM0.925 | 8.000 | 2.000 | 2.677 | 1.004 | 2.618 | 0.925 | 1.083 | 2.2 8000 |
| N331.32-254T51KM0.591 | 10.000 | 2.000 | 2.677 | 0.660 | 3.622 | 0.591 | 0.728 | 2.2 8500 |
| N331.32-254T51LM0.689 | 10.000 | 2.000 | 2.677 | 0.768 | 3.622 | 0.689 | 0.847 | 2.2 8500 |
| N331.32-254T51QM0.807 | 10.000 | 2.000 | 2.677 | 0.886 | 3.622 | 0.807 | 0.965 | 2.2 7100 |
| N331.32-254T51RM0.925 | 10.000 | 2.000 | 2.677 | 1.004 | 3.622 | 0.925 | 1.083 | 2.2 8000 |
| N331.32-305T63KM0.591 | 12.000 | 2.500 | 3.307 | 0.660 | 4.311 | 0.591 | 0.728 | 2.2 7600 |
| N331.32-305T63LM0.689 | 12.000 | 2.500 | 3.307 | 0.768 | 4.311 | 0.689 | 0.847 | 2.2 7600 |
| N331.32-305T63QM0.807 | 12.000 | 2.500 | 3.307 | 0.886 | 4.311 | 0.807 | 0.965 | 2.2 6300 |
| N331.32-305T63RM0.925 | 12.000 | 2.500 | 3.307 | 1.004 | 4.311 | 0.925 | 1.083 | 2.2 6300 |
R = Right hand, L = Left hand
