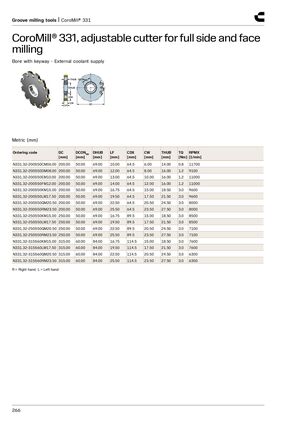

milling
Bore with keyway - External coolant supply
Metric (mm)
| Ordering code | DC [mm] | DCONMS [mm] | DHUB [mm] | LF [mm] | CDX [mm] | CW [mm] | THUB [mm] | TQ [Nm] | RPMX [1/min] |
| N331.32-200S50CM06.00 | 200.00 | 50.00 | 69.00 | 10.00 | 64.5 | 6.00 | 14.00 | 0.8 | 11700 |
| N331.32-200S50DM08.00 | 200.00 | 50.00 | 69.00 | 12.00 | 64.5 | 8.00 | 16.00 | 1.2 | 9100 |
| N331.32-200S50EM10.00 | 200.00 | 50.00 | 69.00 | 13.00 | 64.5 | 10.00 | 16.00 | 1.2 | 11000 |
| N331.32-200S50FM12.00 | 200.00 | 50.00 | 69.00 | 14.00 | 64.5 | 12.00 | 16.00 | 1.2 | 11000 |
| N331.32-200S50KM15.00 | 200.00 | 50.00 | 69.00 | 16.75 | 64.5 | 15.00 | 18.50 | 3.0 | 9600 |
| N331.32-200S50LM17.50 | 200.00 | 50.00 | 69.00 | 19.50 | 64.5 | 17.50 | 21.50 | 3.0 | 9600 |
| N331.32-200S50QM20.50 | 200.00 | 50.00 | 69.00 | 22.50 | 64.5 | 20.50 | 24.50 | 3.0 | 8000 |
| N331.32-200S50RM23.50 | 200.00 | 50.00 | 69.00 | 25.50 | 64.5 | 23.50 | 27.50 | 3.0 | 8000 |
| N331.32-250S50KM15.00 | 250.00 | 50.00 | 69.00 | 16.75 | 89.5 | 15.00 | 18.50 | 3.0 | 8500 |
| N331.32-250S50LM17.50 | 250.00 | 50.00 | 69.00 | 19.50 | 89.5 | 17.50 | 21.50 | 3.0 | 8500 |
| N331.32-250S50QM20.50 | 250.00 | 50.00 | 69.00 | 22.50 | 89.5 | 20.50 | 24.50 | 3.0 | 7100 |
| N331.32-250S50RM23.50 | 250.00 | 50.00 | 69.00 | 25.50 | 89.5 | 23.50 | 27.50 | 3.0 | 7100 |
| N331.32-315S60KM15.00 | 315.00 | 60.00 | 84.00 | 16.75 | 114.5 | 15.00 | 18.50 | 3.0 | 7600 |
| N331.32-315S60LM17.50 | 315.00 | 60.00 | 84.00 | 19.50 | 114.5 | 17.50 | 21.50 | 3.0 | 7600 |
| N331.32-315S60QM20.50 | 315.00 | 60.00 | 84.00 | 22.50 | 114.5 | 20.50 | 24.50 | 3.0 | 6300 |
| N331.32-315S60RM23.50 | 315.00 | 60.00 | 84.00 | 25.50 | 114.5 | 23.50 | 27.50 | 3.0 | 6300 |
R = Right hand, L = Left hand
