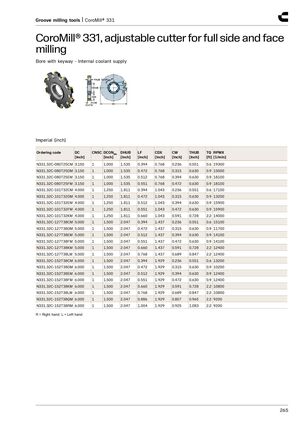

milling
Bore with keyway - Internal coolant supply
Imperial (inch)
| Ordering code | DC [inch] | CNSC | DCONMS [inch] | DHUB [inch] | LF [inch] | CDX [inch] | CW [inch] | THUB [inch] | TQ [ft] | RPMX [1/min] |
| N331.32C-080T25CM | 3.150 | 1 | 1.000 | 1.535 | 0.394 | 0.768 | 0.236 | 0.551 | 0.6 | 19300 |
| N331.32C-080T25DM | 3.150 | 1 | 1.000 | 1.535 | 0.472 | 0.768 | 0.315 | 0.630 | 0.9 | 15000 |
| N331.32C-080T25EM | 3.150 | 1 | 1.000 | 1.535 | 0.512 | 0.768 | 0.394 | 0.630 | 0.9 | 18100 |
| N331.32C-080T25FM | 3.150 | 1 | 1.000 | 1.535 | 0.551 | 0.768 | 0.472 | 0.630 | 0.9 | 18100 |
| N331.32C-101T32CM | 4.000 | 1 | 1.250 | 1.811 | 0.394 | 1.043 | 0.236 | 0.551 | 0.6 | 17100 |
| N331.32C-101T32DM | 4.000 | 1 | 1.250 | 1.811 | 0.472 | 1.043 | 0.315 | 0.630 | 0.9 | 13200 |
| N331.32C-101T32EM | 4.000 | 1 | 1.250 | 1.811 | 0.512 | 1.043 | 0.394 | 0.630 | 0.9 | 15900 |
| N331.32C-101T32FM | 4.000 | 1 | 1.250 | 1.811 | 0.551 | 1.043 | 0.472 | 0.630 | 0.9 | 15900 |
| N331.32C-101T32KM | 4.000 | 1 | 1.250 | 1.811 | 0.660 | 1.043 | 0.591 | 0.728 | 2.2 | 14000 |
| N331.32C-127T38CM | 5.000 | 1 | 1.500 | 2.047 | 0.394 | 1.437 | 0.236 | 0.551 | 0.6 | 15100 |
| N331.32C-127T38DM | 5.000 | 1 | 1.500 | 2.047 | 0.472 | 1.437 | 0.315 | 0.630 | 0.9 | 11700 |
| N331.32C-127T38EM | 5.000 | 1 | 1.500 | 2.047 | 0.512 | 1.437 | 0.394 | 0.630 | 0.9 | 14100 |
| N331.32C-127T38FM | 5.000 | 1 | 1.500 | 2.047 | 0.551 | 1.437 | 0.472 | 0.630 | 0.9 | 14100 |
| N331.32C-127T38KM | 5.000 | 1 | 1.500 | 2.047 | 0.660 | 1.437 | 0.591 | 0.728 | 2.2 | 12400 |
| N331.32C-127T38LM | 5.000 | 1 | 1.500 | 2.047 | 0.768 | 1.437 | 0.689 | 0.847 | 2.2 | 12400 |
| N331.32C-152T38CM | 6.000 | 1 | 1.500 | 2.047 | 0.394 | 1.929 | 0.236 | 0.551 | 0.6 | 13200 |
| N331.32C-152T38DM | 6.000 | 1 | 1.500 | 2.047 | 0.472 | 1.929 | 0.315 | 0.630 | 0.9 | 10200 |
| N331.32C-152T38EM | 6.000 | 1 | 1.500 | 2.047 | 0.512 | 1.929 | 0.394 | 0.630 | 0.9 | 12400 |
| N331.32C-152T38FM | 6.000 | 1 | 1.500 | 2.047 | 0.551 | 1.929 | 0.472 | 0.630 | 0.9 | 12400 |
| N331.32C-152T38KM | 6.000 | 1 | 1.500 | 2.047 | 0.660 | 1.929 | 0.591 | 0.728 | 2.2 | 10800 |
| N331.32C-152T38LM | 6.000 | 1 | 1.500 | 2.047 | 0.768 | 1.929 | 0.689 | 0.847 | 2.2 | 10800 |
| N331.32C-152T38QM | 6.000 | 1 | 1.500 | 2.047 | 0.886 | 1.929 | 0.807 | 0.965 | 2.2 | 9200 |
| N331.32C-152T38RM | 6.000 | 1 | 1.500 | 2.047 | 1.004 | 1.929 | 0.925 | 1.083 | 2.2 | 9200 |
R = Right hand, L = Left hand
