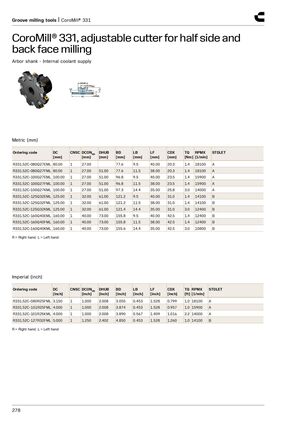

back face milling
Arbor shank - Internal coolant supply
Metric (mm)
| Ordering code | DC [mm] | CNSC DCONMS [mm] | DHUB [mm] | BD [mm] | LB [mm] | LF [mm] | CDX [mm] | TQ [Nm] | RPMX [1/min] | STDLET |
| R331.52C-080Q27EML | 80.00 | 1 27.00 | 77.6 | 9.5 | 40.00 | 20.3 | 1.4 | 18100 | A | |
| R331.52C-080Q27FML | 80.00 | 1 27.00 | 51.00 | 77.6 | 11.5 | 38.00 | 20.3 | 1.4 | 18100 | A |
| R331.52C-100Q27EML | 100.00 | 1 27.00 | 51.00 | 96.8 | 9.5 | 40.00 | 23.5 | 1.4 | 15900 | A |
| R331.52C-100Q27FML | 100.00 | 1 27.00 | 51.00 | 96.8 | 11.5 | 38.00 | 23.5 | 1.4 | 15900 | A |
| R331.52C-100Q27KML | 100.00 | 1 27.00 | 51.00 | 97.3 | 14.4 | 35.00 | 25.8 | 3.0 | 14000 | A |
| R331.52C-125Q32EML | 125.00 | 1 32.00 | 61.00 | 121.2 | 9.5 | 40.00 | 31.0 | 1.4 | 14100 | B |
| R331.52C-125Q32FML | 125.00 | 1 32.00 | 61.00 | 121.2 | 11.5 | 38.00 | 31.0 | 1.4 | 14100 | B |
| R331.52C-125Q32KML | 125.00 | 1 32.00 | 61.00 | 121.4 | 14.4 | 35.00 | 31.0 | 3.0 | 12400 | B |
| R331.52C-160Q40EML | 160.00 | 1 40.00 | 73.00 | 155.8 | 9.5 | 40.00 | 42.5 | 1.4 | 12400 | B |
| R331.52C-160Q40FML | 160.00 | 1 40.00 | 73.00 | 155.8 | 11.5 | 38.00 | 42.5 | 1.4 | 12400 | B |
| R331.52C-160Q40KML | 160.00 | 1 40.00 | 73.00 | 155.6 | 14.4 | 35.00 | 42.5 | 3.0 | 10800 | B |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | DC | CNSC DCONMS | DHUB | BD | LB | LF | CDX | TQ RPMX | STDLET |
| [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [ft] [1/min] | ||
| R331.52C-080R25FML | 3.150 | 1 1.000 | 2.008 | 3.055 | 0.453 | 1.528 | 0.799 | 1.0 18100 | A |
| R331.52C-101R25FML | 4.000 | 1 1.000 | 2.008 | 3.874 | 0.453 | 1.528 | 0.957 | 1.0 15900 | A |
| R331.52C-101R25KML | 4.000 | 1 1.000 | 2.008 | 3.890 | 0.567 | 1.409 | 1.016 | 2.2 14000 | A |
| R331.52C-127R32FML | 5.000 | 1 1.250 | 2.402 | 4.850 | 0.453 | 1.528 | 1.260 | 1.0 14100 | B |
R = Right hand, L = Left hand
