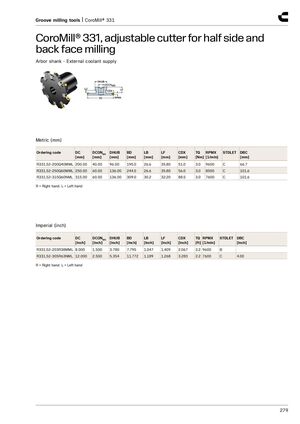

back face milling
Arbor shank - External coolant supply
Metric (mm)
| Ordering code | DC | DCONMS | DHUB | BD | LB | LF | CDX | TQ | RPMX | STDLET | DBC |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [Nm] | [1/min] | [mm] | ||
| R331.52-200Q40MML | 200.00 | 40.00 | 96.00 | 195.0 | 26.6 | 35.80 | 51.0 | 3.0 | 9600 | C | 66.7 |
| R331.52-250Q60MML | 250.00 | 60.00 | 136.00 | 244.0 | 26.6 | 35.80 | 56.0 | 3.0 | 8500 | C | 101.6 |
| R331.52-315Q60NML | 315.00 | 60.00 | 136.00 | 309.0 | 30.2 | 32.20 | 88.5 | 3.0 | 7600 | C | 101.6 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | DC | DCONMS | DHUB | BD | LB | LF | CDX | TQ RPMX | STDLET | DBC |
| [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [ft] [1/min] | [inch] | ||
| R331.52-203R38MML | 8.000 | 1.500 | 3.780 | 7.795 | 1.047 | 1.409 | 2.067 | 2.2 9600 | B | |
| R331.52-305R63NML | 12.000 | 2.500 | 5.354 | 11.772 | 1.189 | 1.268 | 3.283 | 2.2 7600 | C | 4.00 |
R = Right hand, L = Left hand
