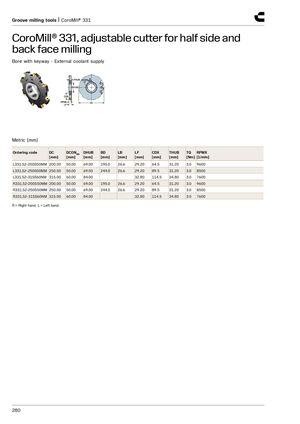

back face milling
Bore with keyway - External coolant supply
Metric (mm)
| Ordering code | DC [mm] | DCONMS [mm] | DHUB [mm] | BD [mm] | LB [mm] | LF [mm] | CDX [mm] | THUB [mm] | TQ [Nm] | RPMX [1/min] |
| L331.52-200S50MM | 200.00 | 50.00 | 69.00 | 195.0 | 26.6 | 29.20 | 64.5 | 31.20 | 3.0 | 9600 |
| L331.52-250S50MM | 250.00 | 50.00 | 69.00 | 244.0 | 26.6 | 29.20 | 89.5 | 31.20 | 3.0 | 8500 |
| L331.52-315S60NM | 315.00 | 60.00 | 84.00 | 32.80 | 114.5 | 34.80 | 3.0 | 7600 | ||
| R331.52-200S50MM | 200.00 | 50.00 | 69.00 | 195.0 | 26.6 | 29.20 | 64.5 | 31.20 | 3.0 | 9600 |
| R331.52-250S50MM | 250.00 | 50.00 | 69.00 | 244.0 | 26.6 | 29.20 | 89.5 | 31.20 | 3.0 | 8500 |
| R331.52-315S60NM | 315.00 | 60.00 | 84.00 | 32.80 | 114.5 | 34.80 | 3.0 | 7600 |
R = Right hand, L = Left hand
