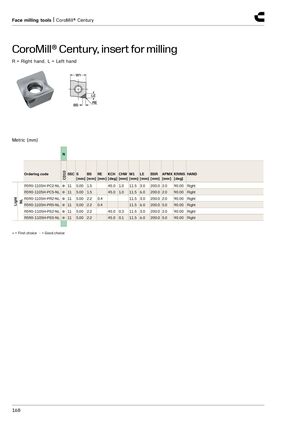

CoroMill® Century, insert for milling
R = Right hand, L = Left hand
Metric (mm)
N
Ordering code SSC S BS RE KCH CHW W1 LE BSR APMX KRINS HAND
[mm] [mm] [mm] [deg] [mm] [mm] [mm] [mm] [mm] [deg]
| R590-1105H-PC2-NL | 11 | 5.00 1.5 | 45.0 1.0 | 11.5 3.0 | 200.0 2.0 | 90.00 Right | |
| R590-1105H-PC5-NL | 11 | 5.00 1.5 | 45.0 1.0 | 11.5 6.0 | 200.0 2.0 | 90.00 Right | |
| R590-1105H-PR2-NL | 11 | 5.00 2.2 | 0.4 | 11.5 3.0 | 200.0 2.0 | 90.00 Right | |
| R590-1105H-PR5-NL | 11 | 5.00 2.2 | 0.4 | 11.5 6.0 | 200.0 5.0 | 90.00 Right | |
| R590-1105H-PS2-NL | 11 | 5.00 2.2 | 45.0 0.3 | 11.5 3.0 | 200.0 2.0 | 90.00 Right | |
| R590-1105H-PS5-NL | 11 | 5.00 2.2 | 45.0 0.1 | 11.5 6.0 | 200.0 5.0 | 90.00 Right |
- = First choice ○ = Good choice
