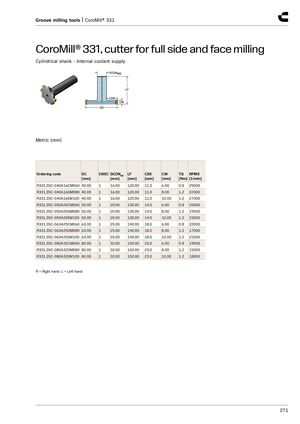

CoroMill® 331, cutter for full side and face milling
Cylindrical shank - Internal coolant supply
Metric (mm)
| Ordering code | DC [mm] | CNSC | DCONMS [mm] | LF [mm] | CDX [mm] | CW [mm] | TQ [Nm] | RPMX [1/min] |
| R331.35C-040A16CM060 | 40.00 | 1 | 16.00 | 120.00 | 11.0 | 6.00 | 0.8 | 29500 |
| R331.35C-040A16DM080 | 40.00 | 1 | 16.00 | 120.00 | 11.0 | 8.00 | 1.2 | 22300 |
| R331.35C-040A16EM100 | 40.00 | 1 | 16.00 | 120.00 | 11.0 | 10.00 | 1.2 | 27000 |
| R331.35C-050A20CM060 | 50.00 | 1 | 20.00 | 130.00 | 14.0 | 6.00 | 0.8 | 25000 |
| R331.35C-050A20DM080 | 50.00 | 1 | 20.00 | 130.00 | 14.0 | 8.00 | 1.2 | 19500 |
| R331.35C-050A20EM100 | 50.00 | 1 | 20.00 | 130.00 | 14.0 | 10.00 | 1.2 | 23500 |
| R331.35C-063A25CM060 | 63.00 | 1 | 25.00 | 140.00 | 18.0 | 6.00 | 0.8 | 22000 |
| R331.35C-063A25DM080 | 63.00 | 1 | 25.00 | 140.00 | 18.0 | 8.00 | 1.2 | 17000 |
| R331.35C-063A25EM100 | 63.00 | 1 | 25.00 | 140.00 | 18.0 | 10.00 | 1.2 | 21000 |
| R331.35C-080A32CM060 | 80.00 | 1 | 32.00 | 150.00 | 23.0 | 6.00 | 0.8 | 19000 |
| R331.35C-080A32DM080 | 80.00 | 1 | 32.00 | 150.00 | 23.0 | 8.00 | 1.2 | 15000 |
| R331.35C-080A32EM100 | 80.00 | 1 | 32.00 | 150.00 | 23.0 | 10.00 | 1.2 | 18000 |
R = Right hand, L = Left hand
