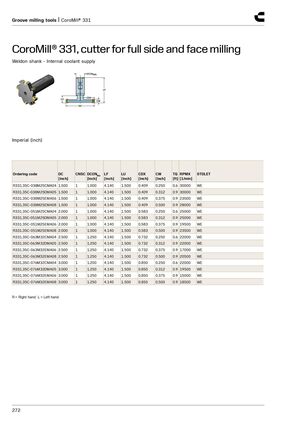

CoroMill® 331, cutter for full side and face milling
Weldon shank - Internal coolant supply
Imperial (inch)
| Ordering code | DC [inch] | CNSC | DCONMS [inch] | LF [inch] | LU [inch] | CDX [inch] | CW [inch] | TQ [ft] | RPMX [1/min] | STDLET |
| R331.35C-038M25CMA04 | 1.500 | 1 | 1.000 | 4.140 | 1.500 | 0.409 | 0.250 | 0.6 | 30000 | WE |
| R331.35C-038M25DMA05 | 1.500 | 1 | 1.000 | 4.140 | 1.500 | 0.409 | 0.312 | 0.9 | 30000 | WE |
| R331.35C-038M25EMA06 | 1.500 | 1 | 1.000 | 4.140 | 1.500 | 0.409 | 0.375 | 0.9 | 23500 | WE |
| R331.35C-038M25EMA08 | 1.500 | 1 | 1.000 | 4.140 | 1.500 | 0.409 | 0.500 | 0.9 | 28000 | WE |
| R331.35C-051M25CMA04 | 2.000 | 1 | 1.000 | 4.140 | 1.500 | 0.583 | 0.250 | 0.6 | 25000 | WE |
| R331.35C-051M25DMA05 | 2.000 | 1 | 1.000 | 4.140 | 1.500 | 0.583 | 0.312 | 0.9 | 25000 | WE |
| R331.35C-051M25EMA06 | 2.000 | 1 | 1.000 | 4.140 | 1.500 | 0.583 | 0.375 | 0.9 | 19500 | WE |
| R331.35C-051M25EMA08 | 2.000 | 1 | 1.000 | 4.140 | 1.500 | 0.583 | 0.500 | 0.9 | 23500 | WE |
| R331.35C-063M32CMA04 | 2.500 | 1 | 1.250 | 4.140 | 1.500 | 0.732 | 0.250 | 0.6 | 22000 | WE |
| R331.35C-063M32DMA05 | 2.500 | 1 | 1.250 | 4.140 | 1.500 | 0.732 | 0.312 | 0.9 | 22000 | WE |
| R331.35C-063M32EMA06 | 2.500 | 1 | 1.250 | 4.140 | 1.500 | 0.732 | 0.375 | 0.9 | 17000 | WE |
| R331.35C-063M32EMA08 | 2.500 | 1 | 1.250 | 4.140 | 1.500 | 0.732 | 0.500 | 0.9 | 20500 | WE |
| R331.35C-076M32CMA04 | 3.000 | 1 | 1.250 | 4.140 | 1.500 | 0.850 | 0.250 | 0.6 | 22000 | WE |
| R331.35C-076M32DMA05 | 3.000 | 1 | 1.250 | 4.140 | 1.500 | 0.850 | 0.312 | 0.9 | 19500 | WE |
| R331.35C-076M32EMA06 | 3.000 | 1 | 1.250 | 4.140 | 1.500 | 0.850 | 0.375 | 0.9 | 15000 | WE |
| R331.35C-076M32EMA08 | 3.000 | 1 | 1.250 | 4.140 | 1.500 | 0.850 | 0.500 | 0.9 | 18500 | WE |
R = Right hand, L = Left hand
