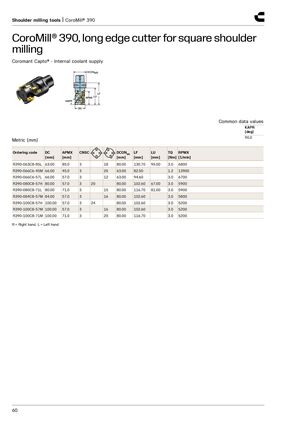

Инструменты для торцевого фрезерования | CoroMill® 390
CoroMill® 390, резец с удлиненной режущей кромкой для фрезеровки квадратных торцевых канавок
Coromant Capto® - Внутренняя подача смазочно-охлаждающей жидкости
Общие значения данных: KAPR = 90,0°
Метрические размеры (мм)
| Обозначение заказа | DC [мм] | APMX [мм] | CNSC | DCONMS [мм] | LF [мм] | LU [мм] | TQ [Нм] | RPMX [об/мин] | |
|---|---|---|---|---|---|---|---|---|---|
| R390-063C8-85L | 63,00 | 85,0 | 3 | 18 | 80,00 | 130,70 | 95,00 | 3,0 | 6800 |
| R390-066C6-45M | 66,00 | 45,0 | 3 | 20 | 63,00 | 82,50 | — | 1,2 | 13900 |
| R390-066C6-57L | 66,00 | 57,0 | 3 | 12 | 63,00 | 94,60 | — | 3,0 | 6700 |
| R390-080C8-57H | 80,00 | 57,0 | 3 | 20 | 80,00 | 102,60 | 67,00 | 3,0 | 5900 |
| R390-080C8-71L | 80,00 | 71,0 | 3 | 15 | 80,00 | 116,70 | 81,00 | 3,0 | 5900 |
| R390-084C8-57M | 84,00 | 57,0 | 3 | 16 | 80,00 | 102,60 | — | 3,0 | 5800 |
| R390-100C8-57H | 100,00 | 57,0 | 3 | 24 | 80,00 | 102,60 | — | 3,0 | 5200 |
| R390-100C8-57M | 100,00 | 57,0 | 3 | 16 | 80,00 | 102,60 | — | 3,0 | 5200 |
| R390-100C8-71M | 100,00 | 71,0 | 3 | 20 | 80,00 | 116,70 | — | 3,0 | 5200 |
R = правое исполнение, L = левое исполнение
