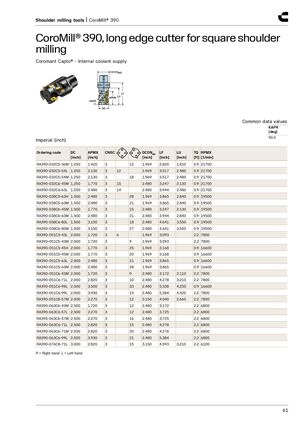

Инструменты для торцевого фрезерования | CoroMill® 390
CoroMill® 390, резец с удлиненной режущей кромкой для фрезеровки квадратных торцевых канавок
Coromant Capto® - Внутренняя подача смазочно-охлаждающей жидкости
Общие значения данных: KAPR = 90,0°
Дюймовые размеры (дюйм)
| Обозначение заказа | DC [дюйм] | APMX [дюйм] | CNSC | DCONMS [дюйм] | LF [дюйм] | LU [дюйм] | TQ [фунт·сила·фут] | RPMX [об/мин] | |
|---|---|---|---|---|---|---|---|---|---|
| RA390-032C5-36M | 1,250 | 1,420 | 3 | 12 | 1,969 | 2,820 | 1,810 | 0,9 | 21700 |
| RA390-032C5-54L | 1,250 | 2,130 | 3 | 12 | 1,969 | 3,517 | 2,480 | 0,9 | 21700 |
| RA390-032C5-54M | 1,250 | 2,130 | 3 | 18 | 1,969 | 3,517 | 2,480 | 0,9 | 21700 |
| RA390-032C6-45M | 1,250 | 1,770 | 3 | 15 | 2,480 | 3,247 | 2,130 | 0,9 | 21700 |
| RA390-032C6-63L | 1,250 | 2,480 | 3 | 14 | 2,480 | 3,944 | 2,480 | 0,9 | 21700 |
| RA390-038C5-63H | 1,500 | 2,480 | 3 | 28 | 1,969 | 3,865 | 2,840 | 0,9 | 19500 |
| RA390-038C5-63M | 1,500 | 2,480 | 3 | 21 | 1,969 | 3,865 | 2,840 | 0,9 | 19500 |
| RA390-038C6-45M | 1,500 | 1,770 | 3 | 15 | 2,480 | 3,247 | 2,130 | 0,9 | 19500 |
| RA390-038C6-63M | 1,500 | 2,480 | 3 | 21 | 2,480 | 3,944 | 2,840 | 0,9 | 19500 |
| RA390-038C6-80L | 1,500 | 3,150 | 3 | 18 | 2,480 | 4,641 | 3,550 | 0,9 | 19500 |
| RA390-038C6-80M | 1,500 | 3,150 | 3 | 27 | 2,480 | 4,641 | 3,550 | 0,9 | 19500 |
| RA390-051C5-43L | 2,000 | 1,720 | 3 | 6 | 1,969 | 3,093 | — | 2,2 | 7800 |
| RA390-051C5-43M | 2,000 | 1,720 | 3 | 9 | 1,969 | 3,093 | — | 2,2 | 7800 |
| RA390-051C5-45H | 2,000 | 1,770 | 3 | 25 | 1,969 | 3,168 | — | 0,9 | 16600 |
| RA390-051C5-45M | 2,000 | 1,770 | 3 | 20 | 1,969 | 3,168 | — | 0,9 | 16600 |
| RA390-051C5-63L | 2,000 | 2,480 | 3 | 21 | 1,969 | 3,865 | — | 0,9 | 16600 |
| RA390-051C5-63M | 2,000 | 2,480 | 3 | 28 | 1,969 | 3,865 | — | 0,9 | 16600 |
| RA390-051C6-43M | 2,000 | 1,720 | 3 | 9 | 2,480 | 3,172 | 2,110 | 2,2 | 7800 |
| RA390-051C6-71L | 2,000 | 2,820 | 3 | 10 | 2,480 | 4,278 | 3,210 | 2,2 | 7800 |
| RA390-051C6-98L | 2,000 | 3,500 | 3 | 33 | 2,480 | 5,338 | 4,250 | 0,9 | 16600 |
| RA390-051C6-99L | 2,000 | 3,930 | 3 | 14 | 2,480 | 5,384 | 4,320 | 2,2 | 7800 |
| RA390-051C8-57M | 2,000 | 2,270 | 3 | 12 | 3,150 | 4,040 | 2,660 | 2,2 | 7800 |
| RA390-063C6-43M | 2,500 | 1,720 | 3 | 12 | 2,480 | 3,172 | — | 2,2 | 6800 |
| RA390-063C6-57L | 2,500 | 2,270 | 3 | 12 | 2,480 | 3,725 | — | 2,2 | 6800 |
| RA390-063C6-57M | 2,500 | 2,270 | 3 | 16 | 2,480 | 3,725 | — | 2,2 | 6800 |
| RA390-063C6-71L | 2,500 | 2,820 | 3 | 15 | 2,480 | 4,278 | — | 2,2 | 6800 |
| RA390-063C6-71M | 2,500 | 2,820 | 3 | 20 | 2,480 | 4,278 | — | 2,2 | 6800 |
| RA390-063C6-99L | 2,500 | 3,930 | 3 | 21 | 2,480 | 5,384 | — | 2,2 | 6800 |
| RA390-076C8-71L | 3,000 | 2,820 | 3 | 15 | 3,150 | 4,593 | 3,210 | 2,2 | 6100 |
R = правое исполнение, L = левое исполнение
