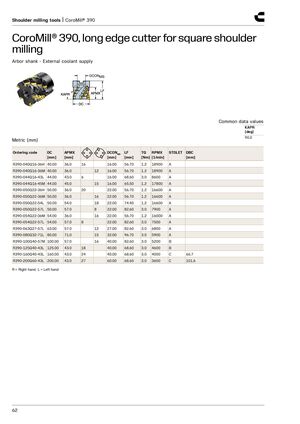

Инструменты для торцевого фрезерования | CoroMill® 390
CoroMill® 390, резец с удлиненной режущей кромкой для фрезеровки квадратных торцевых канавок
Хвостовик на оправке - Внешняя подача смазочно-охлаждающей жидкости
Общие значения данных: KAPR = 90,0°
Метрические размеры (мм)
| Обозначение заказа | DC [мм] | APMX [мм] | DCONMS [мм] | LF [мм] | TQ [Нм] | RPMX [об/мин] | STDLET | DBC [мм] | |
|---|---|---|---|---|---|---|---|---|---|
| R390-040Q16-36H | 40,00 | 36,0 | 16 | 16,00 | 56,70 | 1,2 | 18900 | A | — |
| R390-040Q16-36M | 40,00 | 36,0 | 12 | 16,00 | 56,70 | 1,2 | 18900 | A | — |
| R390-044Q16-43L | 44,00 | 43,0 | 6 | 16,00 | 68,60 | 3,0 | 8600 | A | — |
| R390-044Q16-45M | 44,00 | 45,0 | 15 | 16,00 | 65,50 | 1,2 | 17800 | A | — |
| R390-050Q22-36H | 50,00 | 36,0 | 20 | 22,00 | 56,70 | 1,2 | 16600 | A | — |
| R390-050Q22-36M | 50,00 | 36,0 | 16 | 22,00 | 56,70 | 1,2 | 16600 | A | — |
| R390-050Q22-54L | 50,00 | 54,0 | 18 | 22,00 | 74,40 | 1,2 | 16600 | A | — |
| R390-050Q22-57L | 50,00 | 57,0 | 8 | 22,00 | 82,60 | 3,0 | 7900 | A | — |
| R390-054Q22-36M | 54,00 | 36,0 | 16 | 22,00 | 56,70 | 1,2 | 16000 | A | — |
| R390-054Q22-57L | 54,00 | 57,0 | 8 | 22,00 | 82,60 | 3,0 | 7500 | A | — |
| R390-063Q27-57L | 63,00 | 57,0 | 12 | 27,00 | 82,60 | 3,0 | 6800 | A | — |
| R390-080Q32-71L | 80,00 | 71,0 | 15 | 32,00 | 96,70 | 3,0 | 5900 | A | — |
| R390-100Q40-57M | 100,00 | 57,0 | 16 | 40,00 | 82,60 | 3,0 | 5200 | B | — |
| R390-125Q40-43L | 125,00 | 43,0 | 18 | 40,00 | 68,60 | 3,0 | 4600 | B | — |
| R390-160Q40-43L | 160,00 | 43,0 | 24 | 40,00 | 68,60 | 3,0 | 4000 | C | 66,7 |
| R390-200Q60-43L | 200,00 | 43,0 | 27 | 60,00 | 68,60 | 3,0 | 3600 | C | 101,6 |
R = правое исполнение, L = левое исполнение
