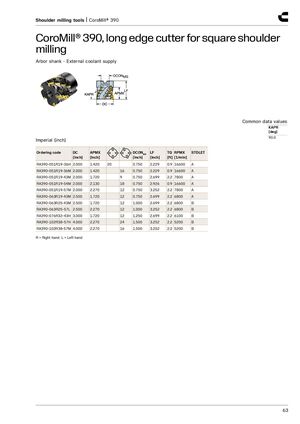

Инструменты для торцевого фрезерования | CoroMill® 390
CoroMill® 390, резец с удлиненной режущей кромкой для фрезеровки квадратных торцевых канавок
Хвостовик на оправке - Внешняя подача смазочно-охлаждающей жидкости
Общие значения данных: KAPR = 90,0°
Дюймовые размеры (дюйм)
| Обозначение заказа | DC [дюйм] | APMX [дюйм] | DCONMS [дюйм] | LF [дюйм] | TQ [фунт·сила·фут] | RPMX [об/мин] | STDLET | |
|---|---|---|---|---|---|---|---|---|
| RA390-051R19-36H | 2,000 | 1,420 | 20 | 0,750 | 2,229 | 0,9 | 16600 | A |
| RA390-051R19-36M | 2,000 | 1,420 | 16 | 0,750 | 2,229 | 0,9 | 16600 | A |
| RA390-051R19-43M | 2,000 | 1,720 | 9 | 0,750 | 2,699 | 2,2 | 7800 | A |
| RA390-051R19-54M | 2,000 | 2,130 | 18 | 0,750 | 2,926 | 0,9 | 16600 | A |
| RA390-051R19-57M | 2,000 | 2,270 | 12 | 0,750 | 3,252 | 2,2 | 7800 | A |
| RA390-063R19-43M | 2,500 | 1,720 | 12 | 0,750 | 2,699 | 2,2 | 6800 | A |
| RA390-063R25-43M | 2,500 | 1,720 | 12 | 1,000 | 2,699 | 2,2 | 6800 | B |
| RA390-063R25-57L | 2,500 | 2,270 | 12 | 1,000 | 3,252 | 2,2 | 6800 | B |
| RA390-076R32-43H | 3,000 | 1,720 | 12 | 1,250 | 2,699 | 2,2 | 6100 | B |
| RA390-102R38-57H | 4,000 | 2,270 | 24 | 1,500 | 3,252 | 2,2 | 5200 | B |
| RA390-102R38-57M | 4,000 | 2,270 | 16 | 1,500 | 3,252 | 2,2 | 5200 | B |
R = правое исполнение, L = левое исполнение
