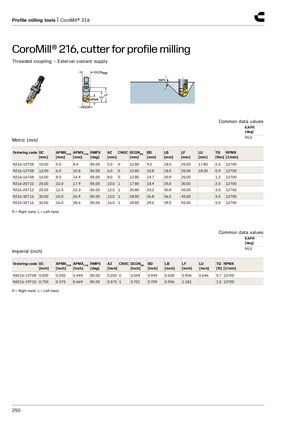

CoroMill® 216, cutter for profile milling
Threaded coupling – External coolant supply
| Metric (mm) | Co | mmon d | ata values KAPR [deg] 90.0 | |||||||||||
| Ordering code | DC [mm] | APMXEFW [mm] | APMXFFW [mm] | RMPX [deg] | AZ [mm] | CNS | C DCONMS [mm] | BD [mm] | LB [mm] | LF [mm] | LU [mm] | TQ [Nm] | RPMX [1/min] | |
| R216-10T08 | 10.00 | 5.0 | 8.6 | 85.00 | 5.0 | 0 | 12.80 | 9.2 | 18.0 | 25.00 | 17.80 | 0.6 | 12700 | |
| R216-12T08 | 12.00 | 6.0 | 10.8 | 85.00 | 6.0 | 0 | 12.80 | 10.8 | 18.0 | 25.00 | 18.30 | 0.9 | 12700 | |
| R216-16T08 | 16.00 | 8.0 | 14.4 | 85.00 | 8.0 | 0 | 12.80 | 14.7 | 20.9 | 25.00 | 1.2 | 12700 | ||
| R216-20T10 | 20.00 | 10.0 | 17.9 | 85.00 | 10.0 | 1 | 17.80 | 18.4 | 25.0 | 30.00 | 2.0 | 12700 | ||
| R216-25T12 | 25.00 | 12.5 | 22.3 | 85.00 | 12.5 | 1 | 20.80 | 23.2 | 30.8 | 35.00 | 3.0 | 12700 | ||
| R216-30T16 | 30.00 | 15.0 | 26.9 | 85.00 | 15.0 | 1 | 28.80 | 26.8 | 36.5 | 45.00 | 5.0 | 12700 | ||
| R216-32T16 | 32.00 | 16.0 | 28.6 | 85.00 | 16.0 | 1 | 28.80 | 29.0 | 39.0 | 45.00 | 5.0 | 12700 |
R = Right hand, L = Left hand
Common data values
| KAPR [deg] | ||||||||||||
| mperial (inc | h) | 90.0 | ||||||||||
| Ordering code | DC [inch] | APMXEFW [inch] | APMXFFW [inch] | RMPX [deg] | AZ [inch] | CNSC DCONMS [inch] | BD [inch] | LB [inch] | LF [inch] | LU [inch] | TQ [ft] RPMX [1/min] | |
| RA216-13T08 | 0.500 | 0.250 | 0.444 | 85.00 | 0.250 | 0 0.504 | 0.445 | 0.630 | 0.906 | 0.646 | 0.7 12700 | |
| RA216-19T10 | 0.750 | 0.375 | 0.669 | 85.00 | 0.375 | 1 0.701 | 0.709 | 0.906 | 1.181 | 1.5 12700 |
R = Right hand, L = Left hand
