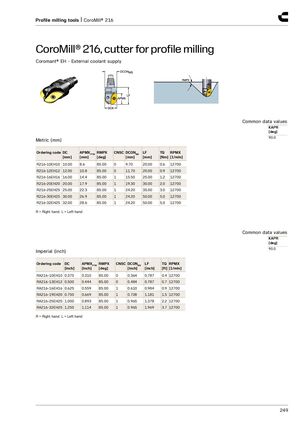

CoroMill® 216, cutter for profile milling
Coromant® EH - External coolant supply
Common data values
KAPR [deg] Metric (mm) 90.0
| Ordering code | DC [mm] | APMXFFW [mm] | RMPX [deg] | CNSC | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] |
| R216-10EH10 | 10.00 | 8.6 | 85.00 | 0 | 9.70 | 20.00 | 0.6 | 12700 |
| R216-12EH12 | 12.00 | 10.8 | 85.00 | 0 | 11.70 | 20.00 | 0.9 | 12700 |
| R216-16EH16 | 16.00 | 14.4 | 85.00 | 1 | 15.50 | 25.00 | 1.2 | 12700 |
| R216-20EH20 | 20.00 | 17.9 | 85.00 | 1 | 19.30 | 30.00 | 2.0 | 12700 |
| R216-25EH25 | 25.00 | 22.3 | 85.00 | 1 | 24.20 | 35.00 | 3.0 | 12700 |
| R216-30EH25 | 30.00 | 26.9 | 85.00 | 1 | 24.20 | 50.00 | 5.0 | 12700 |
| R216-32EH25 | 32.00 | 28.6 | 85.00 | 1 | 24.20 | 50.00 | 5.0 | 12700 |
R = Right hand, L = Left hand
Common data values
KAPR [deg] Imperial (inch) 90.0
| Ordering code | DC [inch] | APMXFFW [inch] | RMPX [deg] | CNSC | DCONMS [inch] | LF [inch] | TQ [ft] | RPMX [1/min] |
| RA216-10EH10 | 0.375 | 0.310 | 85.00 | 0 | 0.364 | 0.787 | 0.4 | 12700 |
| RA216-13EH12 | 0.500 | 0.444 | 85.00 | 0 | 0.484 | 0.787 | 0.7 | 12700 |
| RA216-16EH16 | 0.625 | 0.559 | 85.00 | 1 | 0.610 | 0.984 | 0.9 | 12700 |
| RA216-19EH20 | 0.750 | 0.669 | 85.00 | 1 | 0.728 | 1.181 | 1.5 | 12700 |
| RA216-25EH25 | 1.000 | 0.893 | 85.00 | 1 | 0.965 | 1.378 | 2.2 | 12700 |
| RA216-32EH25 | 1.250 | 1.114 | 85.00 | 1 | 0.965 | 1.969 | 3.7 | 12700 |
R = Right hand, L = Left hand
