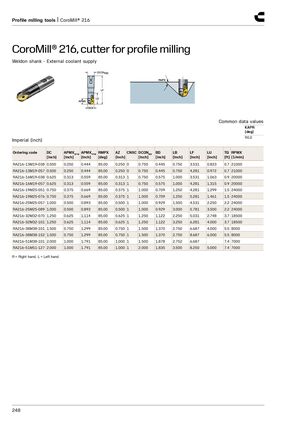

CoroMill® 216, cutter for profile milling
Weldon shank - External coolant supply
Common data values
| mperial (inch) | KAPR [deg] 90.0 | |||||||||||
| Ordering code | DC [inch] | APMXEFW [inch] | APMXFFW [inch] | RMPX [deg] | AZ [inch] | CNS | C DCONMS [inch] | BD [inch] | LB [inch] | LF [inch] | LU [inch] | TQ [ft] RPMX [1/min] |
| RA216-13M19-038 | 0.500 | 0.250 | 0.444 | 85.00 | 0.250 | 0 | 0.750 | 0.445 | 0.750 | 3.531 | 0.823 | 0.7 21000 |
| RA216-13M19-057 | 0.500 | 0.250 | 0.444 | 85.00 | 0.250 | 0 | 0.750 | 0.445 | 0.750 | 4.281 | 0.972 | 0.7 21000 |
| RA216-16M19-038 | 0.625 | 0.313 | 0.559 | 85.00 | 0.313 | 1 | 0.750 | 0.575 | 1.000 | 3.531 | 1.063 | 0.9 20000 |
| RA216-16M19-057 | 0.625 | 0.313 | 0.559 | 85.00 | 0.313 | 1 | 0.750 | 0.575 | 1.000 | 4.281 | 1.315 | 0.9 20000 |
| RA216-19M25-051 | 0.750 | 0.375 | 0.669 | 85.00 | 0.375 | 1 | 1.000 | 0.709 | 1.250 | 4.281 | 1.299 | 1.5 24000 |
| RA216-19M25-076 | 0.750 | 0.375 | 0.669 | 85.00 | 0.375 | 1 | 1.000 | 0.709 | 1.250 | 5.281 | 1.461 | 1.5 24000 |
| RA216-25M25-057 | 1.000 | 0.500 | 0.893 | 85.00 | 0.500 | 1 | 1.000 | 0.929 | 1.500 | 4.531 | 2.250 | 2.2 24000 |
| RA216-25M25-089 | 1.000 | 0.500 | 0.893 | 85.00 | 0.500 | 1 | 1.000 | 0.929 | 3.000 | 5.781 | 3.500 | 2.2 24000 |
| RA216-32M32-070 | 1.250 | 0.625 | 1.114 | 85.00 | 0.625 | 1 | 1.250 | 1.122 | 2.250 | 5.031 | 2.748 | 3.7 18500 |
| RA216-32M32-101 | 1.250 | 0.625 | 1.114 | 85.00 | 0.625 | 1 | 1.250 | 1.122 | 3.250 | 6.281 | 4.000 | 3.7 18500 |
| RA216-38M38-101 | 1.500 | 0.750 | 1.299 | 85.00 | 0.750 | 1 | 1.500 | 1.370 | 2.750 | 6.687 | 4.000 | 5.5 8000 |
| RA216-38M38-152 | 1.500 | 0.750 | 1.299 | 85.00 | 0.750 | 1 | 1.500 | 1.370 | 2.750 | 8.687 | 6.000 | 5.5 8000 |
| RA216-51M38-101 | 2.000 | 1.000 | 1.791 | 85.00 | 1.000 | 1 | 1.500 | 1.878 | 2.752 | 6.687 | 7.4 7000 | |
| RA216-51M51-127 | 2.000 | 1.000 | 1.791 | 85.00 | 1.000 | 1 | 2.000 | 1.835 | 3.500 | 8.250 | 5.000 | 7.4 7000 |
R = Right hand, L = Left hand
