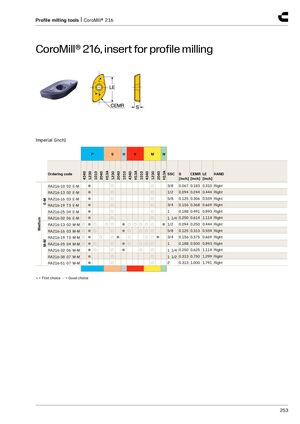

CoroMill® 216, insert for profile milling
Imperial (inch)
| P | S | H | K | M | N | |||||||
| Ordering code | 4340 1230 | 1010 | 2040 H13A | 1230 | 2040 1010 | 4340 H13A 1010 4340 | 1230 2040 | H13A SSC | S [inch] | CEMR [inch] | LE [inch] | HAND |
| RA216-10 02 E-M | ● | ○ | ○ | 3/8 | 0.067 | 0.183 | 0.310 | Right | ||||
| RA216-13 02 E-M | ● | ○ | ○ | 1/2 | 0.094 | 0.244 | 0.444 | Right | ||||
| -M RA216-16 03 E-M | ● | ○ | ○ | 5/8 | 0.125 | 0.306 | 0.559 | Right | ||||
| E RA216-19 T3 E-M | ● | ○ | ○ | 3/4 | 0.156 | 0.368 | 0.669 | Right | ||||
| RA216-25 04 E-M | ● | ○ | ○ | 1 | 0.188 | 0.491 | 0.893 | Right | ||||
| um RA216-32 06 E-M | ● | ○ | ○ | 1 1/4 | 0.250 | 0.614 | 1.114 | Right | ||||
| edi RA216-13 02 M-M | ○● | ○ | ○ | ○ | ● | ○○○○ | ○ | ●1/2 | 0.094 | 0.250 | 0.444 | Right |
| M RA216-16 03 M-M | ○● | ○ | ○ | ● | ○ ○○ | ○ | 5/8 | 0.125 | 0.313 | 0.559 | Right | |
| M RA216-19 T3 M-M | ○● | ○ | ○ | ● | ○ ○ | ○● | 3/4 | 0.156 | 0.375 | 0.669 | Right | |
| M- RA216-25 04 M-M | ○● | ○ | ○ | ● | ○ ○○ | ○ | 1 | 0.188 | 0.500 | 0.893 | Right | |
| RA216-32 06 M-M | ● | ○ | ○ | ● | ○ | ○ | 1 1/4 | 0.250 | 0.625 | 1.114 | Right | |
| RA216-38 07 M-M | ● | ○ | ○ | 1 1/2 | 0.313 | 0.750 | 1.299 | Right | ||||
| RA216-51 07 M-M | ● | ○ | ○ | 2 | 0.313 | 1.000 | 1.791 | Right |
- = First choice = Good choice
