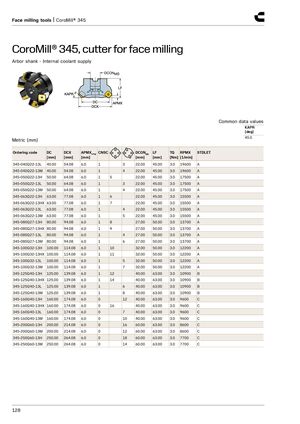

CoroMill® 345, cutter for face milling
Arbor shank - Internal coolant supply
Common data values
| KAPR | ||||||||||||
| Metric (mm) | [deg] 45.0 | |||||||||||
| Ordering code | DC [mm] | DCX [mm] | APMXFFW [mm] | CNSC | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | STDLET | |||
| 345-040Q22-13L | 40.00 | 54.08 | 6.0 | 1 | 3 | 22.00 | 45.00 | 3.0 | 19600 | A | ||
| 345-040Q22-13M | 40.00 | 54.08 | 6.0 | 1 | 4 | 22.00 | 45.00 | 3.0 | 19600 | A | ||
| 345-050Q22-13H | 50.00 | 64.08 | 6.0 | 1 | 5 | 22.00 | 45.00 | 3.0 | 17500 | A | ||
| 345-050Q22-13L | 50.00 | 64.08 | 6.0 | 1 | 3 | 22.00 | 45.00 | 3.0 | 17500 | A | ||
| 345-050Q22-13M | 50.00 | 64.08 | 6.0 | 1 | 4 | 22.00 | 45.00 | 3.0 | 17500 | A | ||
| 345-063Q22-13H | 63.00 | 77.08 | 6.0 | 1 | 6 | 22.00 | 45.00 | 3.0 | 15500 | A | ||
| 345-063Q22-13HX | 63.00 | 77.08 | 6.0 | 1 | 7 | 22.00 | 45.00 | 3.0 | 15500 | A | ||
| 345-063Q22-13L | 63.00 | 77.08 | 6.0 | 1 | 4 | 22.00 | 45.00 | 3.0 | 15500 | A | ||
| 345-063Q22-13M | 63.00 | 77.08 | 6.0 | 1 | 5 | 22.00 | 45.00 | 3.0 | 15500 | A | ||
| 345-080Q27-13H | 80.00 | 94.08 | 6.0 | 1 | 8 | 27.00 | 50.00 | 3.0 | 13700 | A | ||
| 345-080Q27-13HX | 80.00 | 94.08 | 6.0 | 1 | 9 | 27.00 | 50.00 | 3.0 | 13700 | A | ||
| 345-080Q27-13L | 80.00 | 94.08 | 6.0 | 1 | 4 | 27.00 | 50.00 | 3.0 | 13700 | A | ||
| 345-080Q27-13M | 80.00 | 94.08 | 6.0 | 1 | 6 | 27.00 | 50.00 | 3.0 | 13700 | A | ||
| 345-100Q32-13H | 100.00 | 114.08 | 6.0 | 1 | 10 | 32.00 | 50.00 | 3.0 | 12200 | A | ||
| 345-100Q32-13HX | 100.00 | 114.08 | 6.0 | 1 | 11 | 32.00 | 50.00 | 3.0 | 12200 | A | ||
| 345-100Q32-13L | 100.00 | 114.08 | 6.0 | 1 | 5 | 32.00 | 50.00 | 3.0 | 12200 | A | ||
| 345-100Q32-13M | 100.00 | 114.08 | 6.0 | 1 | 7 | 32.00 | 50.00 | 3.0 | 12200 | A | ||
| 345-125Q40-13H | 125.00 | 139.08 | 6.0 | 1 | 12 | 40.00 | 63.00 | 3.0 | 10900 | B | ||
| 345-125Q40-13HX | 125.00 | 139.08 | 6.0 | 1 | 14 | 40.00 | 63.00 | 3.0 | 10900 | B | ||
| 345-125Q40-13L | 125.00 | 139.08 | 6.0 | 1 | 6 | 40.00 | 63.00 | 3.0 | 10900 | B | ||
| 345-125Q40-13M | 125.00 | 139.08 | 6.0 | 1 | 8 | 40.00 | 63.00 | 3.0 | 10900 | B | ||
| 345-160Q40-13H | 160.00 | 174.08 | 6.0 | 0 | 12 | 40.00 | 63.00 | 3.0 | 9600 | C | ||
| 345-160Q40-13HX | 160.00 | 174.08 | 6.0 | 0 | 16 | 40.00 | 63.00 | 3.0 | 9600 | C | ||
| 345-160Q40-13L | 160.00 | 174.08 | 6.0 | 0 | 7 | 40.00 | 63.00 | 3.0 | 9600 | C | ||
| 345-160Q40-13M | 160.00 | 174.08 | 6.0 | 0 | 10 | 40.00 | 63.00 | 3.0 | 9600 | C | ||
| 345-200Q60-13H | 200.00 | 214.08 | 6.0 | 0 | 16 | 60.00 | 63.00 | 3.0 | 8600 | C | ||
| 345-200Q60-13M | 200.00 | 214.08 | 6.0 | 0 | 12 | 60.00 | 63.00 | 3.0 | 8600 | C | ||
| 345-250Q60-13H | 250.00 | 264.08 | 6.0 | 0 | 18 | 60.00 | 63.00 | 3.0 | 7700 | C | ||
| 345-250Q60-13M | 250.00 | 264.08 | 6.0 | 0 | 14 | 60.00 | 63.00 | 3.0 | 7700 | C |
