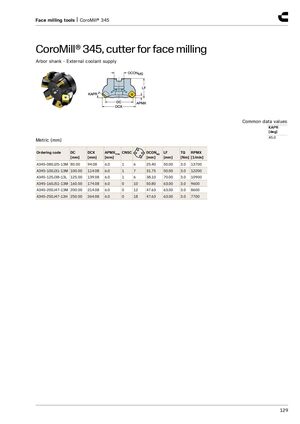

CoroMill® 345, cutter for face milling
Arbor shank - External coolant supply
Common data values
KAPR [deg] Metric (mm) 45.0
| Ordering code | DC [mm] | DCX [mm] | APMXFFW [mm] | CNSC | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | |
| A345-080J25-13M | 80.00 | 94.08 | 6.0 | 1 | 6 | 25.40 | 50.00 | 3.0 | 13700 |
| A345-100J31-13M | 100.00 | 114.08 | 6.0 | 1 | 7 | 31.75 | 50.00 | 3.0 | 12200 |
| A345-125J38-13L | 125.00 | 139.08 | 6.0 | 1 | 6 | 38.10 | 70.00 | 3.0 | 10900 |
| A345-160J51-13M | 160.00 | 174.08 | 6.0 | 0 | 10 | 50.80 | 63.00 | 3.0 | 9600 |
| A345-200J47-13M | 200.00 | 214.08 | 6.0 | 0 | 12 | 47.63 | 63.00 | 3.0 | 8600 |
| A345-250J47-13H | 250.00 | 264.08 | 6.0 | 0 | 18 | 47.63 | 63.00 | 3.0 | 7700 |
