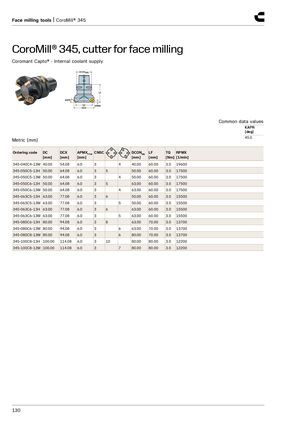

CoroMill® 345, cutter for face milling
Coromant Capto® - Internal coolant supply
Common data values
| Metric (mm) | KAPR [deg] 45.0 | ||||||||||
| Ordering code | DC [mm] | DCX [mm] | APMXFF [mm] | W CNS | C | DCONMS [mm] | LF [mm] | TQ [Nm] | RPMX [1/min] | ||
| 345-040C4-13M | 40.00 | 54.08 | 6.0 | 3 | 4 | 40.00 | 60.00 | 3.0 | 19600 | ||
| 345-050C5-13H | 50.00 | 64.08 | 6.0 | 3 | 5 | 50.00 | 60.00 | 3.0 | 17500 | ||
| 345-050C5-13M | 50.00 | 64.08 | 6.0 | 3 | 4 | 50.00 | 60.00 | 3.0 | 17500 | ||
| 345-050C6-13H | 50.00 | 64.08 | 6.0 | 3 | 5 | 63.00 | 60.00 | 3.0 | 17500 | ||
| 345-050C6-13M | 50.00 | 64.08 | 6.0 | 3 | 4 | 63.00 | 60.00 | 3.0 | 17500 | ||
| 345-063C5-13H | 63.00 | 77.08 | 6.0 | 3 | 6 | 50.00 | 60.00 | 3.0 | 15500 | ||
| 345-063C5-13M | 63.00 | 77.08 | 6.0 | 3 | 5 | 50.00 | 60.00 | 3.0 | 15500 | ||
| 345-063C6-13H | 63.00 | 77.08 | 6.0 | 3 | 6 | 63.00 | 60.00 | 3.0 | 15500 | ||
| 345-063C6-13M | 63.00 | 77.08 | 6.0 | 3 | 5 | 63.00 | 60.00 | 3.0 | 15500 | ||
| 345-080C6-13H | 80.00 | 94.08 | 6.0 | 3 | 8 | 63.00 | 70.00 | 3.0 | 13700 | ||
| 345-080C6-13M | 80.00 | 94.08 | 6.0 | 3 | 6 | 63.00 | 70.00 | 3.0 | 13700 | ||
| 345-080C8-13M | 80.00 | 94.08 | 6.0 | 3 | 6 | 80.00 | 70.00 | 3.0 | 13700 | ||
| 345-100C8-13H | 100.00 | 114.08 | 6.0 | 3 | 10 | 80.00 | 80.00 | 3.0 | 12200 | ||
| 345-100C8-13M | 100.00 | 114.08 | 6.0 | 3 | 7 | 80.00 | 80.00 | 3.0 | 12200 |
