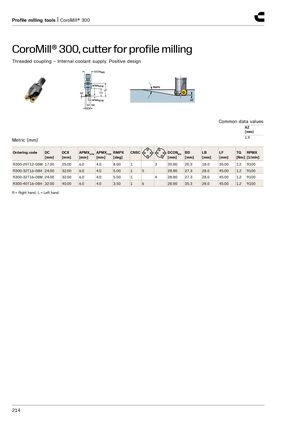

CoroMill® 300, cutter for profile milling
Threaded coupling – Internal coolant supply. Positive design
| Comm | on d | ata values | ||||||||||
| AZ [mm] | ||||||||||||
| Metric (mm) | 1.9 | |||||||||||
| Ordering code | DC [mm] | DCX [mm] | APMXEF [mm] | W APMXFFW [mm] | RMPX [deg] | CNSC | DCONMS [mm] | BD [mm] | LB [mm] | LF [mm] | TQ [Nm | ] RPMX [1/min] |
| R300-25T12-08M | 17.00 | 25.00 | 6.0 | 4.0 | 8.00 | 1 | 3 20.80 | 20.3 | 18.0 | 35.00 | 1.2 | 9100 |
| R300-32T16-08H | 24.00 | 32.00 | 6.0 | 4.0 | 5.00 | 1 5 | 28.80 | 27.3 | 28.0 | 45.00 | 1.2 | 9100 |
| R300-32T16-08M | 24.00 | 32.00 | 6.0 | 4.0 | 5.00 | 1 | 4 28.80 | 27.3 | 28.0 | 45.00 | 1.2 | 9100 |
| R300-40T16-08H | 32.00 | 40.00 | 6.0 | 4.0 | 3.50 | 1 6 | 28.80 | 35.3 | 28.0 | 45.00 | 1.2 | 9100 |
R = Right hand, L = Left hand
