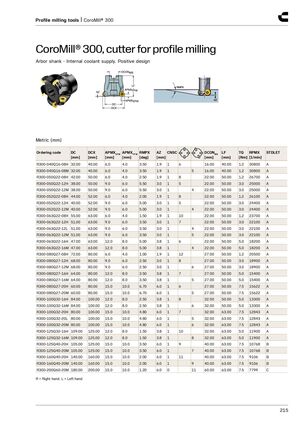

CoroMill® 300, cutter for profile milling
Arbor shank - Internal coolant supply. Positive design
Metric (mm)
| Ordering code | DC [mm] | DCX [mm] | APMXEFW [mm] | APMXFFW [mm] | RMPX [deg] | AZ [mm] | CNSC | DCONMS [mm] | LF [mm] | TQ [Nm | ] RPMX [1/min] | STDLET | ||
| R300-040Q16-08H | 32.00 | 40.00 | 6.0 | 4.0 | 3.50 | 1.9 | 1 | 6 | 16.00 | 40.00 | 1.2 | 30800 | A | |
| R300-040Q16-08M | 32.00 | 40.00 | 6.0 | 4.0 | 3.50 | 1.9 | 1 | 5 | 16.00 | 40.00 | 1.2 | 30800 | A | |
| R300-050Q22-08H | 42.00 | 50.00 | 6.0 | 4.0 | 2.50 | 1.9 | 1 | 8 | 22.00 | 50.00 | 1.2 | 26700 | A | |
| R300-050Q22-12H | 38.00 | 50.00 | 9.0 | 6.0 | 5.50 | 3.0 | 1 | 5 | 22.00 | 50.00 | 3.0 | 25000 | A | |
| R300-050Q22-12M | 38.00 | 50.00 | 9.0 | 6.0 | 5.50 | 3.0 | 1 | 4 | 22.00 | 50.00 | 3.0 | 25000 | A | |
| R300-052Q22-08H | 44.00 | 52.00 | 6.0 | 4.0 | 2.00 | 1.9 | 1 | 8 | 22.00 | 50.00 | 1.2 | 26100 | A | |
| R300-052Q22-12H | 40.00 | 52.00 | 9.0 | 6.0 | 5.00 | 3.0 | 1 | 5 | 22.00 | 50.00 | 3.0 | 24400 | A | |
| R300-052Q22-12M | 40.00 | 52.00 | 9.0 | 6.0 | 5.00 | 3.0 | 1 | 4 | 22.00 | 50.00 | 3.0 | 24400 | A | |
| R300-063Q22-08H | 55.00 | 63.00 | 6.0 | 4.0 | 1.50 | 1.9 | 1 | 10 | 22.00 | 50.00 | 1.2 | 23700 | A | |
| R300-063Q22-12H | 51.00 | 63.00 | 9.0 | 6.0 | 3.50 | 3.0 | 1 | 7 | 22.00 | 50.00 | 3.0 | 22100 | A | |
| R300-063Q22-12L | 51.00 | 63.00 | 9.0 | 6.0 | 3.50 | 3.0 | 1 | 4 | 22.00 | 50.00 | 3.0 | 22100 | A | |
| R300-063Q22-12M | 51.00 | 63.00 | 9.0 | 6.0 | 3.50 | 3.0 | 1 | 5 | 22.00 | 50.00 | 3.0 | 22100 | A | |
| R300-063Q22-16H | 47.00 | 63.00 | 12.0 | 8.0 | 5.00 | 3.8 | 1 | 6 | 22.00 | 50.00 | 5.0 | 18200 | A | |
| R300-063Q22-16M | 47.00 | 63.00 | 12.0 | 8.0 | 5.00 | 3.8 | 1 | 4 | 22.00 | 50.00 | 5.0 | 18200 | A | |
| R300-080Q27-08H | 72.00 | 80.00 | 6.0 | 4.0 | 1.00 | 1.9 | 1 | 12 | 27.00 | 50.00 | 1.2 | 20500 | A | |
| R300-080Q27-12H | 68.00 | 80.00 | 9.0 | 6.0 | 2.50 | 3.0 | 1 | 8 | 27.00 | 50.00 | 3.0 | 18900 | A | |
| R300-080Q27-12M | 68.00 | 80.00 | 9.0 | 6.0 | 2.50 | 3.0 | 1 | 6 | 27.00 | 50.00 | 3.0 | 18900 | A | |
| R300-080Q27-16H | 64.00 | 80.00 | 12.0 | 8.0 | 3.50 | 3.8 | 1 | 7 | 27.00 | 50.00 | 5.0 | 15400 | A | |
| R300-080Q27-16M | 64.00 | 80.00 | 12.0 | 8.0 | 3.50 | 3.8 | 1 | 5 | 27.00 | 50.00 | 5.0 | 15400 | A | |
| R300-080Q27-20H | 60.00 | 80.00 | 15.0 | 10.0 | 6.70 | 6.0 | 1 | 6 | 27.00 | 50.00 | 7.5 | 15622 | A | |
| R300-080Q27-20M | 60.00 | 80.00 | 15.0 | 10.0 | 6.70 | 6.0 | 1 | 5 | 27.00 | 50.00 | 7.5 | 15622 | A | |
| R300-100Q32-16H | 84.00 | 100.00 | 12.0 | 8.0 | 2.50 | 3.8 | 1 | 8 | 32.00 | 50.00 | 5.0 | 13300 | A | |
| R300-100Q32-16M | 84.00 | 100.00 | 12.0 | 8.0 | 2.50 | 3.8 | 1 | 6 | 32.00 | 50.00 | 5.0 | 13300 | A | |
| R300-100Q32-20H | 80.00 | 100.00 | 15.0 | 10.0 | 4.80 | 6.0 | 1 | 7 | 32.00 | 63.00 | 7.5 | 12843 | A | |
| R300-100Q32-20L | 80.00 | 100.00 | 15.0 | 10.0 | 4.80 | 6.0 | 1 | 5 | 32.00 | 63.00 | 7.5 | 12843 | A | |
| R300-100Q32-20M | 80.00 | 100.00 | 15.0 | 10.0 | 4.80 | 6.0 | 1 | 6 | 32.00 | 63.00 | 7.5 | 12843 | A | |
| R300-125Q32-16H | 109.00 | 125.00 | 12.0 | 8.0 | 1.50 | 3.8 | 1 | 10 | 32.00 | 63.00 | 5.0 | 11900 | A | |
| R300-125Q32-16M | 109.00 | 125.00 | 12.0 | 8.0 | 1.50 | 3.8 | 1 | 8 | 32.00 | 63.00 | 5.0 | 11900 | A | |
| R300-125Q40-20H | 105.00 | 125.00 | 15.0 | 10.0 | 3.50 | 6.0 | 1 | 9 | 40.00 | 63.00 | 7.5 | 10768 | B | |
| R300-125Q40-20M | 105.00 | 125.00 | 15.0 | 10.0 | 3.50 | 6.0 | 1 | 7 | 40.00 | 63.00 | 7.5 | 10768 | B | |
| R300-160Q40-20H | 140.00 | 160.00 | 15.0 | 10.0 | 2.00 | 6.0 | 1 | 11 | 40.00 | 63.00 | 7.5 | 9106 | B | |
| R300-160Q40-20M | 140.00 | 160.00 | 15.0 | 10.0 | 2.00 | 6.0 | 1 | 9 | 40.00 | 63.00 | 7.5 | 9106 | B | |
| R300-200Q60-20M | 180.00 | 200.00 | 15.0 | 10.0 | 1.20 | 6.0 | 0 | 11 | 60.00 | 63.00 | 7.5 | 7799 | C |
R = Right hand, L = Left hand
