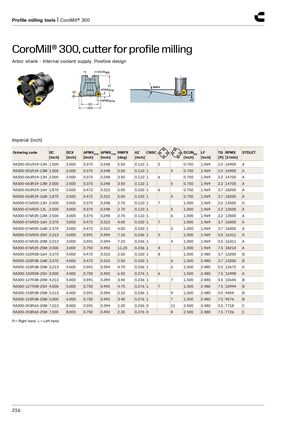

CoroMill® 300, cutter for profile milling
Arbor shank - Internal coolant supply. Positive design
Imperial (inch)
| Ordering code | DC [inch] | DCX [inch] | APMXEF [inch] | W APMXFF [inch] | W RMPX [deg] | AZ [inch] CNS | C | DCONMS [inch] | LF [inch] | TQ [ft] RPMX [1/min] | STDLET | |
| RA300-051R19-13H | 1.500 | 2.000 | 0.375 | 0.248 | 5.50 | 0.110 1 | 5 | 0.750 | 1.969 | 2.2 16900 | A | |
| RA300-051R19-13M | 1.500 | 2.000 | 0.375 | 0.248 | 5.50 | 0.110 1 | 4 | 0.750 | 1.969 | 2.2 16900 | A | |
| RA300-063R19-13H | 2.000 | 2.500 | 0.375 | 0.248 | 3.50 | 0.110 1 | 6 | 0.750 | 1.969 | 2.2 14700 | A | |
| RA300-063R19-13M | 2.000 | 2.500 | 0.375 | 0.248 | 3.50 | 0.110 1 | 5 | 0.750 | 1.969 | 2.2 14700 | A | |
| RA300-063R19-16H | 1.870 | 2.500 | 0.472 | 0.315 | 5.00 | 0.150 1 | 6 | 0.750 | 1.969 | 3.7 18200 | A | |
| RA300-063R19-16M | 1.870 | 2.500 | 0.472 | 0.315 | 5.00 | 0.150 1 | 4 | 0.750 | 1.969 | 3.7 18200 | A | |
| RA300-076R25-13H | 2.500 | 3.000 | 0.375 | 0.248 | 2.70 | 0.110 1 | 7 | 1.000 | 1.969 | 2.2 13500 | A | |
| RA300-076R25-13L | 2.500 | 3.000 | 0.375 | 0.248 | 2.70 | 0.110 1 | 5 | 1.000 | 1.969 | 2.2 13500 | A | |
| RA300-076R25-13M | 2.500 | 3.000 | 0.375 | 0.248 | 2.70 | 0.110 1 | 6 | 1.000 | 1.969 | 2.2 13500 | A | |
| RA300-076R25-16H | 2.370 | 3.000 | 0.472 | 0.315 | 4.00 | 0.150 1 | 7 | 1.000 | 1.969 | 3.7 16000 | A | |
| RA300-076R25-16M | 2.370 | 3.000 | 0.472 | 0.315 | 4.00 | 0.150 1 | 5 | 1.000 | 1.969 | 3.7 16000 | A | |
| RA300-076R25-20H | 2.213 | 3.000 | 0.591 | 0.394 | 7.10 | 0.236 1 | 5 | 1.000 | 1.969 | 5.5 16311 | A | |
| RA300-076R25-20M | 2.213 | 3.000 | 0.591 | 0.394 | 7.10 | 0.236 1 | 4 | 1.000 | 1.969 | 5.5 16311 | A | |
| RA300-076R25-25M | 2.000 | 3.000 | 0.750 | 0.492 | 11.20 | 0.236 1 | 4 | 1.000 | 1.969 | 7.5 18214 | A | |
| RA300-102R38-16H | 3.370 | 4.000 | 0.472 | 0.315 | 2.50 | 0.150 1 | 8 | 1.500 | 2.480 | 3.7 13200 | B | |
| RA300-102R38-16M | 3.370 | 4.000 | 0.472 | 0.315 | 2.50 | 0.150 1 | 6 | 1.500 | 2.480 | 3.7 13200 | B | |
| RA300-102R38-20M | 3.213 | 4.000 | 0.591 | 0.394 | 4.70 | 0.236 1 | 6 | 1.500 | 2.480 | 5.5 12672 | A | |
| RA300-102R38-25H | 3.000 | 4.000 | 0.750 | 0.492 | 6.50 | 0.276 1 | 6 | 1.500 | 2.480 | 7.5 13498 | A | |
| RA300-127R38-20M | 4.213 | 5.000 | 0.591 | 0.394 | 3.40 | 0.236 1 | 7 | 1.500 | 2.480 | 5.5 10645 | B | |
| RA300-127R38-25H | 4.000 | 5.000 | 0.750 | 0.492 | 4.70 | 0.276 1 | 7 | 1.500 | 2.480 | 7.5 10994 | B | |
| RA300-152R38-20M | 5.213 | 6.000 | 0.591 | 0.394 | 2.10 | 0.236 1 | 9 | 1.500 | 2.480 | 5.5 9404 | B | |
| RA300-152R38-25M | 5.000 | 6.000 | 0.750 | 0.492 | 3.40 | 0.276 1 | 7 | 1.500 | 2.480 | 7.5 9576 | B | |
| RA300-203R63-20M | 7.213 | 8.000 | 0.591 | 0.394 | 1.20 | 0.236 0 | 11 | 2.500 | 2.480 | 5.5 7718 | C | |
| RA300-203R63-25M | 7.000 | 8.000 | 0.750 | 0.492 | 2.30 | 0.276 0 | 8 | 2.500 | 2.480 | 7.5 7726 | C |
R = Right hand, L = Left hand
