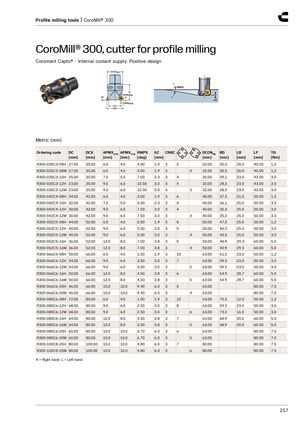

CoroMill® 300, cutter for profile milling
Coromant Capto® - Internal coolant supply. Positive design
Metric (mm)
| Ordering code DC [mm] | DCX [mm] | APMXEFW [mm] | APMXFFW [mm] | RMPX [deg] | AZ [mm | ] CNS | C | DCONMS [mm] | BD [mm] | LB [mm] | LF [mm] | TQ [Nm] | |
| R300-035C3-08H 27.00 | 35.00 | 6.0 | 4.0 | 4.00 | 1.9 | 3 | 5 | 32.00 | 30.3 | 20.0 | 40.00 | 1.2 | |
| R300-035C3-08M 27.00 | 35.00 | 6.0 | 4.0 | 4.00 | 1.9 | 3 | 4 | 32.00 | 30.3 | 20.0 | 40.00 | 1.2 | |
| R300-035C3-10H 25.00 | 35.00 | 7.5 | 5.0 | 7.00 | 2.3 | 3 | 4 | 32.00 | 29.1 | 23.0 | 43.00 | 3.0 | |
| R300-035C3-12H 23.00 | 35.00 | 9.0 | 6.0 | 10.50 | 3.0 | 3 | 4 | 32.00 | 28.3 | 23.0 | 43.00 | 3.0 | |
| R300-035C3-12M 23.00 | 35.00 | 9.0 | 6.0 | 10.50 | 3.0 | 3 | 3 | 32.00 | 28.3 | 23.0 | 43.00 | 3.0 | |
| R300-042C4-08H 34.00 | 42.00 | 6.0 | 4.0 | 3.00 | 1.9 | 3 | 6 | 40.00 | 37.3 | 21.0 | 50.00 | 1.2 | |
| R300-042C4-10H 32.00 | 42.00 | 7.5 | 5.0 | 5.00 | 2.3 | 3 | 5 | 40.00 | 36.1 | 25.0 | 50.00 | 3.0 | |
| R300-042C4-12H 30.00 | 42.00 | 9.0 | 6.0 | 7.50 | 3.0 | 3 | 4 | 40.00 | 35.3 | 25.0 | 50.00 | 3.0 | |
| R300-042C4-12M 30.00 | 42.00 | 9.0 | 6.0 | 7.50 | 3.0 | 3 | 3 | 40.00 | 35.3 | 25.0 | 50.00 | 3.0 | |
| R300-052C5-08H 44.00 | 52.00 | 6.0 | 4.0 | 2.00 | 1.9 | 3 | 8 | 50.00 | 47.3 | 25.0 | 50.00 | 1.2 | |
| R300-052C5-12H 40.00 | 52.00 | 9.0 | 6.0 | 5.00 | 3.0 | 3 | 5 | 50.00 | 45.3 | 25.0 | 50.00 | 3.0 | |
| R300-052C5-12M 40.00 | 52.00 | 9.0 | 6.0 | 5.00 | 3.0 | 3 | 4 | 50.00 | 45.3 | 25.0 | 50.00 | 3.0 | |
| R300-052C5-16H 36.00 | 52.00 | 12.0 | 8.0 | 7.00 | 3.8 | 3 | 5 | 50.00 | 40.9 | 29.3 | 60.00 | 5.0 | |
| R300-052C5-16M 36.00 | 52.00 | 12.0 | 8.0 | 7.00 | 3.8 | 3 | 4 | 50.00 | 40.9 | 29.3 | 60.00 | 5.0 | |
| R300-066C6-08H 58.00 | 66.00 | 6.0 | 4.0 | 1.50 | 1.9 | 3 | 10 | 63.00 | 61.3 | 23.0 | 50.00 | 1.2 | |
| R300-066C6-12H 54.00 | 66.00 | 9.0 | 6.0 | 3.50 | 3.0 | 3 | 7 | 63.00 | 59.3 | 23.0 | 50.00 | 3.0 | |
| R300-066C6-12M 54.00 | 66.00 | 9.0 | 6.0 | 3.50 | 3.0 | 3 | 5 | 63.00 | 59.3 | 23.0 | 50.00 | 3.0 | |
| R300-066C6-16H 50.00 | 66.00 | 12.0 | 8.0 | 4.50 | 3.8 | 3 | 6 | 63.00 | 54.9 | 28.7 | 60.00 | 5.0 | |
| R300-066C6-16M 50.00 | 66.00 | 12.0 | 8.0 | 4.50 | 3.8 | 3 | 5 | 63.00 | 54.9 | 28.7 | 60.00 | 5.0 | |
| R300-066C6-20H 46.00 | 66.00 | 15.0 | 10.0 | 9.40 | 6.0 | 3 | 5 | 63.00 | 80.00 | 7.5 | |||
| R300-066C6-20M 46.00 | 66.00 | 15.0 | 10.0 | 9.40 | 6.0 | 3 | 4 | 63.00 | 80.00 | 7.5 | |||
| R300-080C6-08H 72.00 | 80.00 | 6.0 | 4.0 | 1.00 | 1.9 | 3 | 12 | 63.00 | 75.3 | 12.0 | 50.00 | 1.2 | |
| R300-080C6-12H 68.00 | 80.00 | 9.0 | 6.0 | 2.50 | 3.0 | 3 | 8 | 63.00 | 59.3 | 23.0 | 50.00 | 3.0 | |
| R300-080C6-12M 68.00 | 80.00 | 9.0 | 6.0 | 2.50 | 3.0 | 3 | 6 | 63.00 | 73.3 | 16.0 | 50.00 | 3.0 | |
| R300-080C6-16H 64.00 | 80.00 | 12.0 | 8.0 | 3.50 | 3.8 | 3 | 7 | 63.00 | 68.9 | 20.0 | 60.00 | 5.0 | |
| R300-080C6-16M 64.00 | 80.00 | 12.0 | 8.0 | 3.50 | 3.8 | 3 | 5 | 63.00 | 68.9 | 20.0 | 60.00 | 5.0 | |
| R300-080C6-20H 60.00 | 80.00 | 15.0 | 10.0 | 6.70 | 6.0 | 3 | 6 | 63.00 | 80.00 | 7.5 | |||
| R300-080C6-20M 60.00 | 80.00 | 15.0 | 10.0 | 6.70 | 6.0 | 3 | 5 | 63.00 | 80.00 | 7.5 | |||
| R300-100C8-20H 80.00 | 100.00 | 15.0 | 10.0 | 4.80 | 6.0 | 3 | 7 | 80.00 | 80.00 | 7.5 | |||
| R300-100C8-20M 80.00 | 100.00 | 15.0 | 10.0 | 4.80 | 6.0 | 3 | 6 | 80.00 | 80.00 | 7.5 |
R = Right hand, L = Left hand
