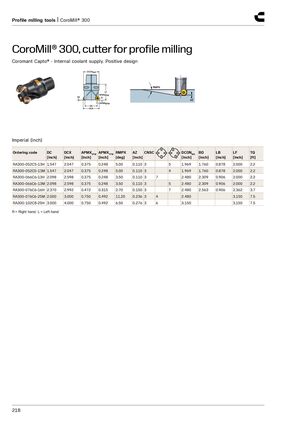

CoroMill® 300, cutter for profile milling
Coromant Capto® - Internal coolant supply. Positive design
Imperial (inch)
| Ordering code | DC [inch] | DCX [inch] | APMXEF [inch] | W APMXFF [inch] | W RMPX [deg] | AZ [inch] | CNS | C | DCONMS [inch] | BD [inch] | LB [inch] | LF [inch] | TQ [ft] | |
| RA300-052C5-13H | 1.547 | 2.047 | 0.375 | 0.248 | 5.00 | 0.110 | 3 | 5 | 1.969 | 1.760 | 0.878 | 2.000 | 2.2 | |
| RA300-052C5-13M | 1.547 | 2.047 | 0.375 | 0.248 | 5.00 | 0.110 | 3 | 4 | 1.969 | 1.760 | 0.878 | 2.000 | 2.2 | |
| RA300-066C6-13H | 2.098 | 2.598 | 0.375 | 0.248 | 3.50 | 0.110 | 3 | 7 | 2.480 | 2.309 | 0.906 | 2.000 | 2.2 | |
| RA300-066C6-13M | 2.098 | 2.598 | 0.375 | 0.248 | 3.50 | 0.110 | 3 | 5 | 2.480 | 2.309 | 0.906 | 2.000 | 2.2 | |
| RA300-076C6-16H | 2.370 | 2.992 | 0.472 | 0.315 | 2.70 | 0.150 | 3 | 7 | 2.480 | 2.563 | 0.906 | 2.362 | 3.7 | |
| RA300-076C6-25M | 2.000 | 3.000 | 0.750 | 0.492 | 11.20 | 0.236 | 3 | 4 | 2.480 | 3.150 | 7.5 | |||
| RA300-102C8-25H | 3.000 | 4.000 | 0.750 | 0.492 | 6.50 | 0.276 | 3 | 6 | 3.150 | 3.150 | 7.5 |
R = Right hand, L = Left hand
